IMB500

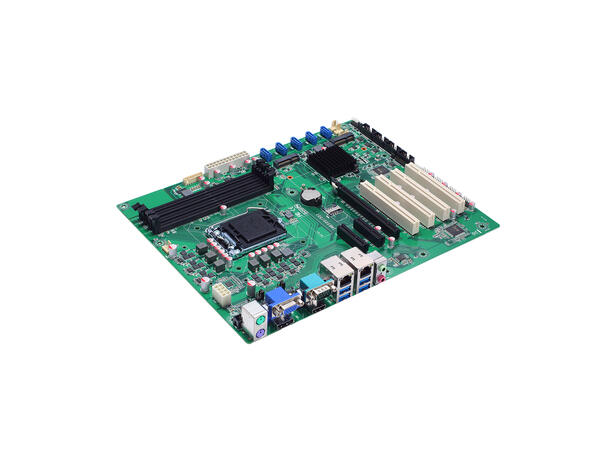

Introduction: The IMB500 is a high-performance industrial ATX motherboard designed for demanding computing applications. It supports 7th/6th Generation Intel® Core™, Pentium®, and Celeron® processors with the LGA1151 socket and Intel® Q170 chipset. With support for up to 64 GB DDR4 memory, triple display outputs, dual LAN, and rich I/O interfaces, the IMB500 is ideal for industrial automation, medical imaging, and surveillance systems.

ATX Industrial Motherboard with Intel® Q170 Chipset and Triple Display Support

Key Features

• CPU Support: 7th/6th Gen Intel® Core™ i7/i5/i3, Pentium®, and Celeron® processors (LGA1151)
• Chipset: Intel® Q170
• Memory: 4 x DDR4-2400/2133/1866 DIMM, up to 64 GB
• Display Outputs: DisplayPort, HDMI, VGA (Triple-view supported)
• Storage: 5 x SATA-600 with RAID 0/1/5/10 support
• Expansion: 1 x PCIe x16, 1 x PCIe x4, 5 x PCI
• USB Ports: 4 x USB 3.2 Gen1x1, 8 x USB 2.0
• LAN: Dual Gigabit Ethernet
• mSATA: Supported
• Audio: HD Audio with Realtek ALC887 codec
• Watchdog Timer: 255 levels, 1 to 255 sec.
• Trusted Platform Module: TPM 1.2 (optional)

Specifications

• Form Factor: ATX
• Power Input: ATX power supply
• Operating Temperature: 0°C to +60°C
• Dimensions: 305 x 244 mm (12" x 9.6")
• OS Support: Windows® 10, Linux
