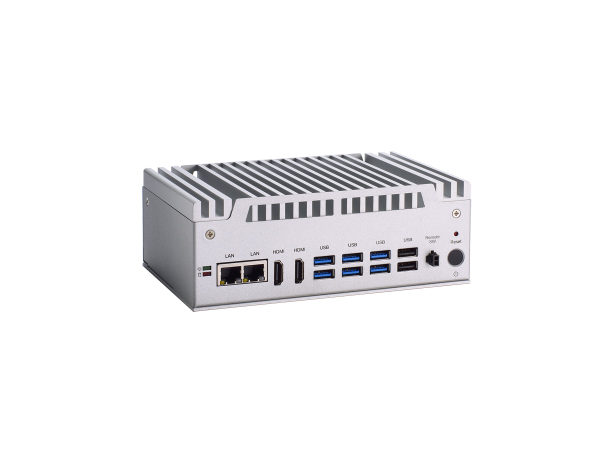

eBOX570

The Axiomtek eBOX570 is a fanless embedded system powered by 13th Gen Intel® Core™ or Celeron® processors (Raptor Lake-P) and designed for rugged industrial and edge computing applications. With a wide operating temperature range, rich I/O interfaces, and robust construction, it is ideal for AGVs, AMRs, industrial IoT gateways, and other mission-critical environments.

Key Features

• Processor: Intel® Core™ i7-1365UE, Core™ i5-1335UE, or Celeron® U300E (TDP up to 15 W)
• Memory: 1 × DDR4-3200 SO-DIMM, up to 32 GB
• USB: 4 × USB 3.2 Gen2, 2 × USB 3.2 Gen1, 2 × USB 2.0
• Serial Ports: 2 × RS-232/422/485
• Ethernet: 2 × Gigabit LAN (one with Intel® AMT support)
• Display Outputs: 2 × HDMI 1.4b, up to 4096 × 2160 @ 30 Hz
• Storage: 1 × M.2 Key M 2280 socket for NVMe or SATA SSD
• Expansion: 1 × full-size PCIe Mini Card slot, 1 × M.2 Key E 2230 slot
• Security: TPM 2.0 supported; Intel® vPro on selected models
• Power Input: 12 V DC ±5%
• Operating Temperature: –40 °C to +70 °C (with wide-temp DRAM/SSD)
• Construction: Aluminum extrusion and heavy-duty steel chassis
• Dimensions: 120 × 178 × 65 mm (4.72? × 7.01? × 2.56?)
• Certifications: CE, FCC Class A, UKCA
• Mounting Options: Wall mount, DIN-rail, VESA mount
