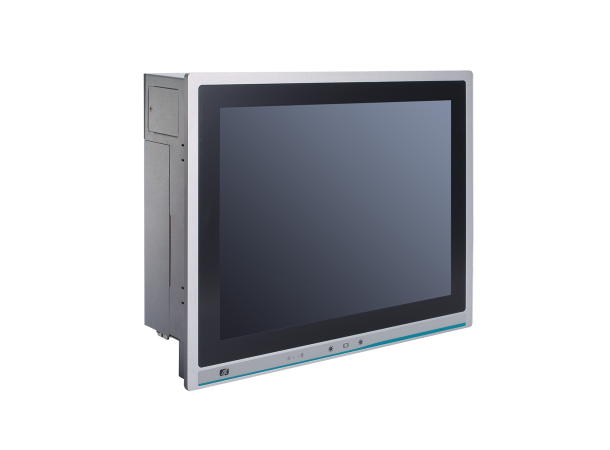

P115-ADL-TRA 15" Panel PC

12th Gen. i7/i5/i3, LGA1700, H610,1xPCIe

Product nr: 137142
P115-ADL-TRA 15" Panel PC 12th Gen. i7/i5/i3, LGA1700, H610,1xPCIe
p115-adl-tra.pdf
LCD Panel
  • 15" XGA TFT LCD
  • 300 nits
  • 1024 x 768 pixels
CPU
  • LGA1700 socket 12th gen Intel® Core™ i7/i5/i3,
    Celeron® & Pentium® processor (Tj 100°C)
    TDP 35W/65W
Chipset
  • Intel® H610
System Memory
  • 2 x 260-pin DDR4-3200/2666/2400MHz SO-DIMM,
    up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232
  • 1 x RS-232/422/485
USB
  • 2 x USB 3.2 GEN1
  • 4 x USB 2.0
Ethernet
  • 1 x 2500/1000/100/10Mbps Ethernet (Intel® I225-V )
  • 1 x 1000/100/10Mbps Ethernet (Intel® I219-V)
Display
  • 1 x HDMI
  • 1 x VGA
  • 1 x DisplayPort
Audio
  • 1 x Audio (Mic-in & Line-out)
Storage
  • 1 x 2.5” SATA HDD(WT)/SSD
Expansion
  • 1 x Flexible IO window (optional)
  • 1 x PCIe x16
Others
  • 1 x Remote power switch
  • 1 x AC socket
  • TPM 2.0
Touchscreen
  • 5-wire resistive touch
Front Bezel
  • Aluminum w/ IP65/NEMA 4 rugged protection
Power Supply
  • 100 to 240 VAC, 250W
Power Comsumption
  • 120W
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Operating Temperature
  • 0°C to +50°C (+32°F to +122°F)
Relative Humidity
  • 10% to 90% @ +40°C, non-considering
Vibration
  • 1G, 5 - 500Hz, operation (SSD, random)
Dimensions
(W x D x H)
  • 378.3 x 88.8 x 310.3 mm (14.89" x 3.5" x 12.22")
Weight (net/gross)
  • 6.3kg (13.89lb)/ 8.6kg (18.96lb)
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4
  • UKCA
  • FCC Class A
EOS
  • Win11, Win11 IoT
Mounting
  • Wall mount kit
  • Stand kit
