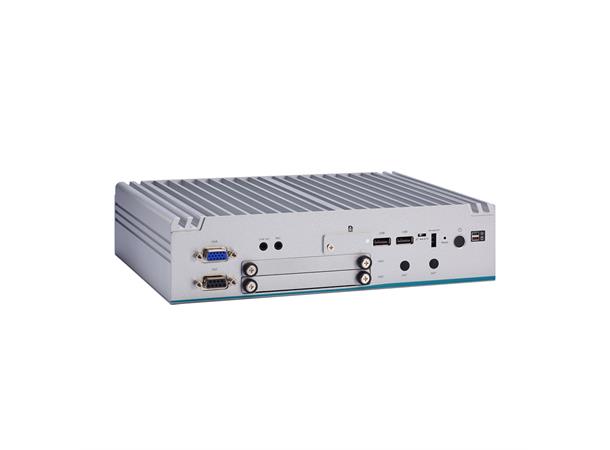

eBOX630-528-FL-8365UEi5-8365UE/3x LAN/9-36VDC/-40+70

CPU	Intel® Core™ i7-8665UE/i5-8365UE/i3-8145UE & Celeron® 4305UE (TDP up to 15W)
Chipset	SoC integrated
System Memory	2 x 260-pin DDR4-2400 SO-DIMM, up to 64GB
BIOS	AMI
COM	2 x RS-232/422/485 2 x RS-232
USB	2 x USB 3.2 Gen2 2 x USB 3.2 Gen1 2 x USB 2.0
Ethernet/PoE	3 x 10/100/100 Mbps Ethernet (Intel® i219LM, Intel® i211AT)
Display	2 x HDMI (lockable) 1 x VGA
Digital I/O	8-CH TTL DIO via DB9 female
Audio	1 x Audio (Mic-in/Line-out)
Storage	2 x Hot swappable 2.5” HDD drive bay (max. up 9.5 mm height) 1 x mSATA (enabled in BIOS setting)
Expansion	2 x Full-size PCI Express Mini Card Slot A (USB + PCIe signal) Slot B (USB + PCIe + SATA signal)
Others	TPM 2.0 1 x Phoenix type VDC power input connector 1 x ATX power switch 1 x AT/ATX quick switch 1 x Remote power switch 1 x Reset switch 1 x Front-access SIM slot 4 x SMA-type antenna opening
Power Supply	9 to 36 VDC
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-40°C to +70°C (-40°F to +158°F) with 0.7 m/s air flow -40°C to +65°C (-40°F to +149°F) with 0.5 m/s air flow (with W.T. DRAM & SSD,CPU TDP 15W)
Relative Humidity	10% - 95%, non-condensing
Vibration	IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock	IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Dimensions (W x D x H)	250 mm (9.84”) (W) x 170 mm (6.69”) (D) x 60 mm (2.36”) (H)
Weight (net/gross)	1.38 kg (3.04 lb)/2.08 kg (4.59 lb)
Certifications	CE, FCC Class A
EOS Support	Win 10 IoT, Linux
Software Support	AMS.AXView
Mounting	Wall mount kit DIN-rail kit

Accessories

Alternatives

Articles

Number of articles found:

INDUSTRIAL PC

eBOX630-528-FL-8365UE

i5-8365UE/3x LAN/9-36VDC/-40+70

Product nr: 135423

Datasheet

Description
Support

CPU	Intel® Core™ i7-8665UE/i5-8365UE/i3-8145UE & Celeron® 4305UE (TDP up to 15W)
Chipset	SoC integrated
System Memory	2 x 260-pin DDR4-2400 SO-DIMM, up to 64GB
BIOS	AMI
COM	2 x RS-232/422/485 2 x RS-232
USB	2 x USB 3.2 Gen2 2 x USB 3.2 Gen1 2 x USB 2.0
Ethernet/PoE	3 x 10/100/100 Mbps Ethernet (Intel® i219LM, Intel® i211AT)
Display	2 x HDMI (lockable) 1 x VGA
Digital I/O	8-CH TTL DIO via DB9 female
Audio	1 x Audio (Mic-in/Line-out)
Storage	2 x Hot swappable 2.5” HDD drive bay (max. up 9.5 mm height) 1 x mSATA (enabled in BIOS setting)
Expansion	2 x Full-size PCI Express Mini Card Slot A (USB + PCIe signal) Slot B (USB + PCIe + SATA signal)
Others	TPM 2.0 1 x Phoenix type VDC power input connector 1 x ATX power switch 1 x AT/ATX quick switch 1 x Remote power switch 1 x Reset switch 1 x Front-access SIM slot 4 x SMA-type antenna opening
Power Supply	9 to 36 VDC
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-40°C to +70°C (-40°F to +158°F) with 0.7 m/s air flow -40°C to +65°C (-40°F to +149°F) with 0.5 m/s air flow (with W.T. DRAM & SSD,CPU TDP 15W)
Relative Humidity	10% - 95%, non-condensing
Vibration	IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock	IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Dimensions (W x D x H)	250 mm (9.84”) (W) x 170 mm (6.69”) (D) x 60 mm (2.36”) (H)
Weight (net/gross)	1.38 kg (3.04 lb)/2.08 kg (4.59 lb)
Certifications	CE, FCC Class A
EOS Support	Win 10 IoT, Linux
Software Support	AMS.AXView
Mounting	Wall mount kit DIN-rail kit
