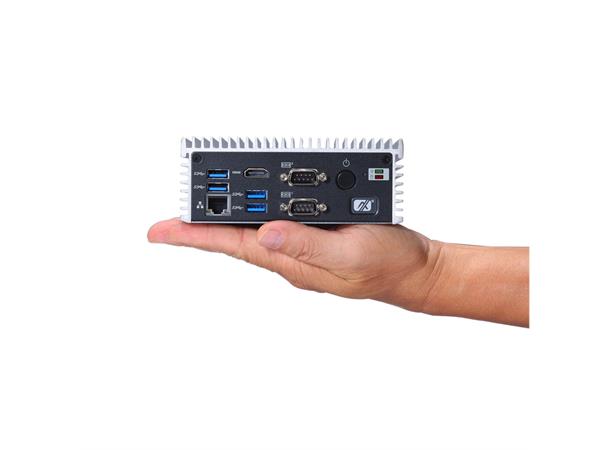

eBOX560-300-FL-N3710-EU

Axiomtek. Pentium N3710 1.6GHz

Product nr: 120578
69400
CPU
  • Intel® Pentium® N3710 1.6 GHz Braswell quad-core SoC
Chipset
  • SoC Integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1600 up to 8 GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 1 x RS-232
USB
  • 4 x USB 3.0
Ethernet
  • 2 x 10/100/1000Mbps
Display
  • 2 x HDMI
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5” SATA HDD drive bay
  • 1 x mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
Others
  • 2 x Antenna opening
Power Supply
  • Input: AC 90-264V, AC 60W adapter with lock
  • Output: DC 12V @ 5A
Watchdog Timer
  • 255 levels, 1~255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -20°C ~ +55°C (-4°F~+131°F), with W.T. SSD & memory non-boost mode
Relative Humidity
  • 10%~95% , non-condensing
Vibration
  • 3 Grms w/ SSD™ (5-500Hz, X, Y, Z directions)
Dimensions
(W x D x H)
  • 141.5 x 106 x 55 mm (5.57" x 4.17" x 2.17")
Weight (net/gross)
  • 0.8 kg (1.76 lb)/1.5 kg (3.31 lb)
Certification
  • CE
EOS Support
  • WE8S, WES7, Linux, Win10 IoT
Mounting
  • Wall mount
  • Din-rail
  • VESA mount
