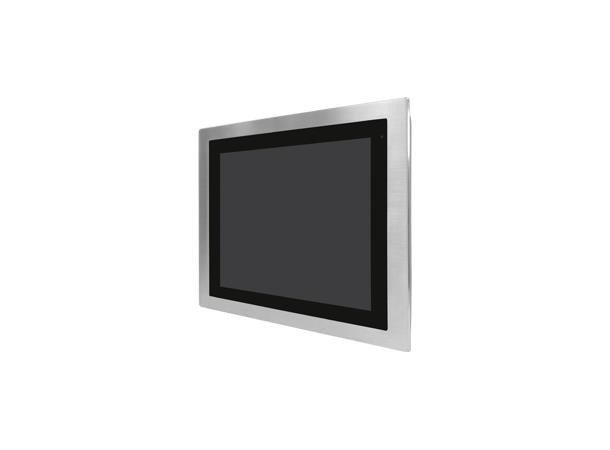

Panel PC

FABS-815PH 15" Stainless front 1000nits

N2930,4GB,PCTouch,IP66/IP69K front

Product nr: 126110
261774
Datablad
Specifications
System
CPUOnboard Intel Celeron N2930 Processor (2M Cache, 1.83GHz)
System ChipsetSoC
System MemoryOnboard 4GB DDR3L SDRAM
External I/O
USB2 x USB 3.0 type A
Serial / Parallel1 x RS-232/422/485 DB-9, default RS-232(COM1)1 x RS-232 DB-9(COM2)
Audio1 x Line 0ut
LAN2 x GbE LAN RJ-45
Power1 x 3-pin terminal block connector, 1 x 2-pin Power Switch connector
Storage Space
HDD/SSD1 x 2.5” SATA HDD space (Easily Accessible)
Others1 x internal SD slot onboard
Expansion
On board expansion bus1 x Mini-PCIe (full size)
Display
LCD Size15" TFT-LCD
Max. resolution1024 x 768
Max. color16.7M
Luminance(cd/m²)1000
Viewangle(H°/V°)145 /160
Backlight lifetime(hrs)30,000
Touch Screen(Option)
Touch TypeProjected Capacitive Touch
InterfaceUSB interface
Light transmission(%)over 90%
Power
Power inputDC 9~36V
Mechanical
Construction304(default)/316(option) Stainless steel front bezel, Aluminum back cover
IP ratingIP66/IP69K compliant front bezel
MountingPanel mounting, VESA 100 x 100
Dimension(mm)422 x 322 x 54
Net weight(Kgs)4.4
Environment
Operating temperature(°C)0~50°C (-20~60 option)
Storage temperature(°C)-30~70°C
Storage humidity10 to 90%@ 40°C, non-condensing
CertificationCE / FCC Class A / EN 1672-2
Operating System Support
Windows embedded 7Windows embedded 8.1Windows 10 IoT ENT LTSB
Ordering Information
ItemDescription
Dimension
ViTAM, Panel PC, ARCHMI, Industrial Panel PC, Stainless Steel Panel PC, Water Proof Panel PC, Industrial Display-15” Fanless Industrial Compact Size Panel PC
