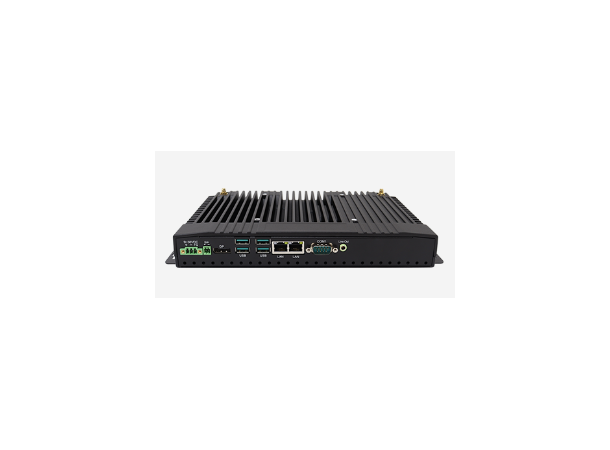

Aplex ACS-500 for VESA/Wall Mounting.
System
- CPU: 11th Gen. Core i3-1115G4E,
can be upgraded to i5-1145G7E
- 2 x 260-pin SO-DIMM DDR4 slot, up to 64GB
- TPM 2.0
Storage
- 1x M.2 M-key 2280 (Support PCIe/SATA3)
I/O Connections
- 4x USB 3.0 type A
- 1x DB9 Connector including:
1xRS-232 (RTS, Rx, Tx, CTS), pin1 RTS/5V/12V Selectable via
jumper (COM1)
1x RS232 (Tx, Rx)/422/485(COM2) by y cable
- 1x 1GbE, 1x2,5GbE LAN Rj45
- 1x Line-out for audio
- 1x DP/HDMI
- 1x 3-pin terminal block connector for power
- 1x 2-pin Power Switch Connector
-
9-36VDC
For more information please see datasheet
