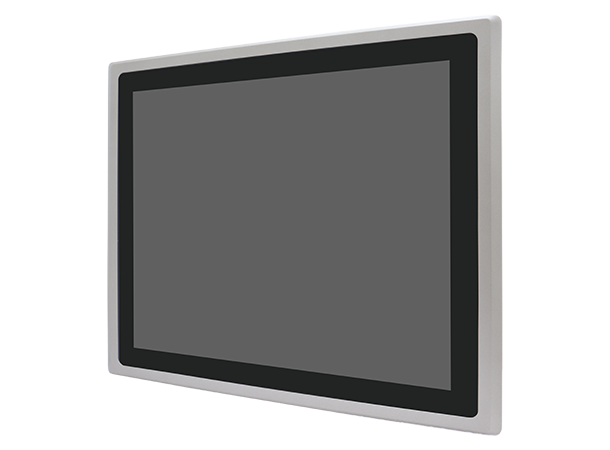

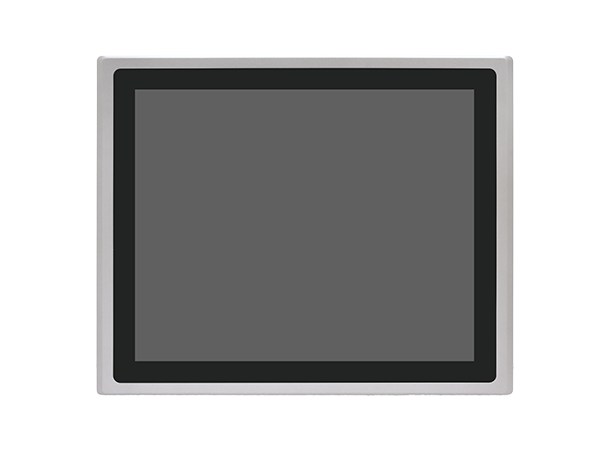

Aplex ARCHMI-S-919DP

19" Fanless Industrial Panel PC with 12th Gen Intel Core i3/i5 CPU. Total IP66 Front
Note that there is no RAM or storage included, if you need this added please contact sales.

Specification

System
CPU: Intel Core i3-1215U (Standard), Option i5-1235U
Memory: 2x260-pin SO-DIMM up to 32GB DDR4 3200 MHz
TPM: TPM 2.0

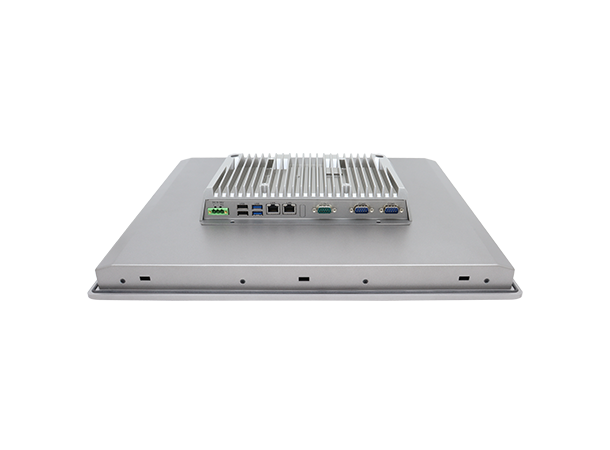

IO Ports
2x USB 3.2 Type A, 2x USB 2.0 Type A>
1x DB9 Type RS-485/422/232(COM1, Bios Selection, RS-232 by default)
1x DB9 Type RS-485/422/232(COM2, Bios Selection, RS-232 by default)
1x RJ45 Intel I219LM GbE LAN
1x RJ45 Intel I210ATM GbE LAN
1x Terminal Block Type, 9-36VDC Power input

Storage
1x M.2 Key-M Slot nor NVME (PCIe, 2280)

Expansion
1 x M.2 Key-E Slot (Support WIFI+BT, 2230)(USB2.0, PCIe x1)
1 x M.2 Key-B Slot w/1 x Nano-SIM slot(Support 4G/5G, 3042/3052) (USB3.2 Gen.1 x1,
                PCIe x1(Default)/SATA, USB2.0)

Display
Display type: 19" TFT-LCD
Resolution: 1280x1024
Brightness: Standard is 350cd/m2, can upgrade to high brightness 1000cd/m2
Touch: Projected Capacitive Touch
MTBF: 50,000h

Power
9-36VDC Input


For more information please see datasheet or contact sales.
