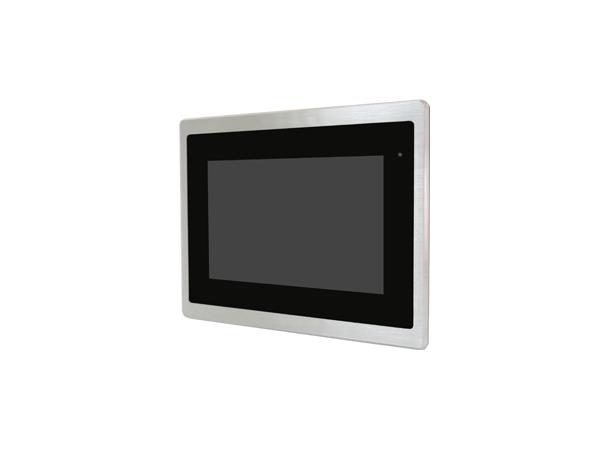

FABS-807P 7" Stainless front
FABS-807P 7" Stainless front
N2930,4GB,PCTouch,IP66/IP69K front
Product nr:
126103
Add to wish list
Datablad
Description
Support
Specifications
System
CPU
Onboard Intel Celeron N2930 Processor (2M Cache, 1.83GHz)
System Chipset
SoC
System Memory
Onboard 4GB DDR3L SDRAM
Power Consumption
12W
External I/O
USB
2 x USB 3.0 type A
Serial / Parallel
1 x RS-232/422/485 DB-9, default RS-232(COM1)
1 x RS-232 DB-9(COM2)
Audio
1 x Line 0ut
LAN
2 x GbE LAN RJ-45t
Power
1 x 3-pin terminal block connector, 1 x 2-pin Power Switch connector
Storage Space
HDD/SSD
1 x MO-297 SSD space
Others
1 x internal SD slot onboard
Expansion
On board expansion bus
1 x Mini-PCIe (full size)
Display
LCD Size
7" TFT-LCD
Max. resolution
800 x 480
Max. color
262K
Luminance(cd/m²)
350
Viewangle(H°/V°)
140/ 110
Backlight lifetime(hrs)
40,000
Touch Screen(Option)
Touch Type
Projected Capacitive Touch
Interface
USB interface
Light transmission(%)
over 90%
Power
Power input
DC 9~36V
Mechanical
Construction
304(default)/316(option) Stainless steel front bezel, Aluminum back cover
IP rating
IP66/IP69K compliant front bezel
Mounting
Panel mounting, VESA 75 x 75
Dimension(mm)
217 x 163 x 40
Net weight(Kgs)
1.2
Environment
Operating temperature(°C)
0~50°C (-20~60 option)
Storage temperature(°C)
-30~70°C
Storage humidity
10 to 90%@ 40°C, non-condensing
Certification
CE / FCC Class A / EN 1672-2
Operating System Support
Windows embedded 7
Windows embedded 8.1
Windows 10 IoT ENT LTSB
Ordering Information
Item
Description
FABS-807P (Barebone)
7" WVGA fanless HMI barebone with Celeron N2930 (1.83.GHz ) CPU, 4GB DDR3L RAM, Projected Capacitive touch, 9~36V DC input with adapter, Stainless front bezel and Aluminum chassis.
