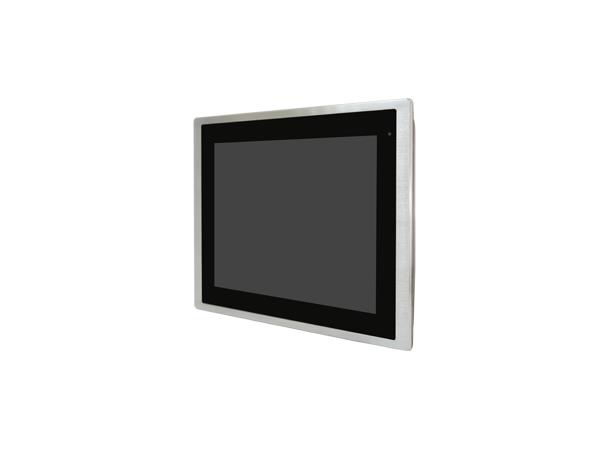

FABS-812P 12" Stainless front
N2930,4GB,PCTouch,IP66/IP69K front
Specifications
System
CPU
Onboard Intel Celeron N2930 Processor (2M Cache, 1.83GHz)
System Chipset
SoC
System Memory
Onboard 4GB DDR3L SDRAM
Power Consumption
16W
External I/O
USB
2 x USB 3.0 type A
Serial / Parallel
1 x RS-232/422/485 DB-9, default RS-232(COM1)
1 x RS-232 DB-9(COM2)
Audio
1 x Line 0ut
LAN
2 x GbE LAN RJ-45
Power
1 x 3-pin terminal block connector, 1 x 2-pin Power Switch connector
Storage Space
HDD/SSD
1 x 2.5" SATA HDD space (Easily Accessible)
Others
1 x internal SD slot onboard
Expansion
On board expansion bus
1 x Mini-PCIe (full size)
Display
LCD Size
12.1" TFT-LCD
Max. resolution
800 x 600 / 1024 x 768
Max. color
16.2M
Luminance(cd/m²)
500
Viewangle(H°/V°)
160/ 140
Backlight lifetime(hrs)
30,000
Touch Screen(Option)
Touch Type
Projected Capacitive Touch
Interface
USB interface
Light transmission(%)
over 90%
Power
Power input
DC 9~36V
Mechanical
Construction
304(default)/316(option) Stainless steel front bezel, Aluminum back cover
IP rating
IP66/IP69K compliant front bezel
Mounting
Panel mounting, VESA 100 x 100
Dimension(mm)
331 x 257 x 52
Net weight(Kgs)
2.5
Environment
Operating temperature(°C)
0~50°C (-20~60 option)
Storage temperature(°C)
-30~70°C
Storage humidity
10 to 90%@ 40°C, non-condensing
Certification
CE / FCC Class A / EN 1672-2
Operating System Support
Windows embedded 7
Windows embedded 8.1
Windows 10 IoT ENT LTSB
Ordering Information
Item
Description
FABS-812P (Barebone)
12.1" SVGA fanless HMI barebone with Celeron N2930 (1.83.GHz ) CPU, 4GB DDR3L RAM, Projected Capacitive touch, 9~36V DC input with adapter, Stainless front bezel and Aluminum chassis.
