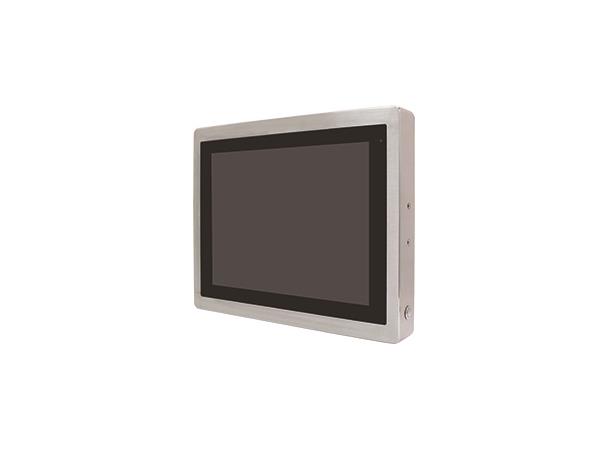

Panel PC

ViTAM-815R 15" IP66/IP69K Stainless

Aplex/N2930/4GB/32GB SSD/Res. touch

Product nr: 121420
66348
Specifications
System
CPUOnboard Intel Celeron N2930(1.83GHz) Processor
System ChipsetSoC
System MemoryOnboard 4GB DDR 3L 1600 MHz/8GB (optional)
Power ConsumptionTBD
USB1 x M12 8-pin for USB 2.0 with waterproof cover and chain
Serial / Parallel1 x M12 8pin for COM 1, RS-232/422/485, Default RS-232, with waterproof cover and chain
LAN1 x M12 8pin for LAN with waterproof cover and chain
Power1 x M12 3pin DC Power with waterproof cover and chain / 1 x Power Switch on the rear side / 1 x Touch on/off button on the side
Storage Space
HDD1 x 2.5" HDD/SSD
Movable device1 x SD slot
Expansion
Expansion slot1 x Mini PCIe slot for WIFI/BT (optional)
Display
LCD Size15" TFT-LCD
Max. resolution1024 x 768
Max. color16.7M
Luminance(cd/m²)420
Viewangle(H°/V°)160/160
Contrast800:1
Backlight lifetime(hrs)50000
Touch Screen(Option)
Touch TypeResistive Touch
InterfaceUSB
Light transmission(%)Over 80%
Power
Power input9~36V DC
Mechanical
ConstructionStainless steel enclosure
IP ratingIP66 / IP69K
MountingVESA 75 x 75, Yoke mount
Dimension(mm)399 x 324 x 53
Net weight(Kgs)7 Kg
Enviroment
Operating temperature(°C)-20~60°C
Storage temperature(°C)-30~70°C
Storage humidity10 to 90% @ 40°C, non- condensing
CertificationCE / FCC CLASS A
Operating System SupportWindows 7 Embedded Enterprise,Windows Embedded Standard 7,Windows Embedded 8.1 Pro,Windows Embedded 8.1 Industry Pro,Windows 10 IoT 2016
Ordering Information
Order NoDescription
ViTAM-815R-0115"/1024x768/S.S./N2930/4G/32GMLCSSD/RT/9~36V/w ADP
Option?RFID module design on the front side
2 x blank M12 connectots for selecting 2 options below:
?2 x USB 2.0 via TB-528U2 ?1 x USB 3.0 via cable ?1 x LAN via cable ?1 x COM Port via TB-528C1 ?1 x CAN via TB-528CAN2 ?1 x POE via TB-528E1U2POE
Dimension
