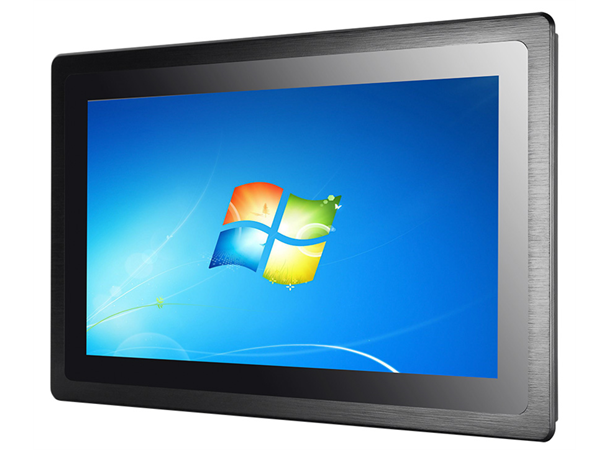

TPC101-M2-J6412 10,1" Panel-PC

By default, there is no operating system included in the standard package (it can be added upon request).
Availible in multiple configurations (Windows, Android, Pure Monitor)

This PanelPC has a very thin (3mm) bezel that makes it perfect for panel-mounting.

Internals

• Industrial motherboard for a long lifespan
• CX-J6412
• CPU: Intel® Celeron J6412 Quad-core 2 GHz
• 1 x 8G DDR3 Memory
• 10,1” 16:10 LCD screen HD 1280x800dpi, 300cd/m2
• Windows 10/11, Linux, Android

Storage

• SSD: mSATA256GB (Standard) up to 512GB

Display

• TFT LCD 10,1” 16:10 1280x800dpi
• Brightness: 300cd/m2
• 50.000h MTBF backlight
• View angle: 85/85/85/85°

Touchscreen/glass

• 10-point PCAP touch for fingers
  (Standard, optional Resistive, No touch)

I/O connections

• 1x Phoenix Terminal
  (Power/1xRS232/1xRS485/1xCAN/5xGPIO)
• 1x DC 12-36VDC
• 2x USB2.0, 2xUSB3.0
• 2x LAN RJ45 (10/100/1000M)
• 1x HDMI
• 1x SIM
• 1xVGA
• 1xAudio I/O
• 1xRS232
• 2xWifi Antenna


For more technical details and options see datasheet
