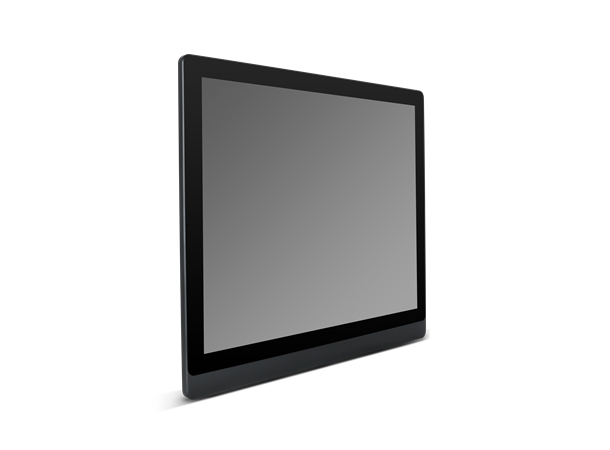

TPC215-M4-J4125 21,5" Panel-PC

Industrial PanelPC for VESA/Wall mount.

By default, there is no operating system included in the standard package (it can be added upon request).
Available in multiple sizes (10,1-23,8" some details may differ)
Can be ordered in black or silver color-scheme

Internals

• Industrial motherboard for a long lifespan
• CX-J4125
• CPU: Intel® Celeron J4125 Quad-core 2 GHz
• 1 x 8G DDR4 Memory
• 21,5” 16:9 LCD screen HD 1920x1080dpi, 300cd/m2
• Windows 10, Linux, Prime OS/Android

Storage

• SSD: mSATA 256GB

Display

• LCD LED 21,5” 16:9 1920x1080dpi
• Brightness: 300cd/m2
• 50.000h MTBF backlight
• View angle: 89/89/89/89°
• Delay: 5ms

Touchscreen/glass

• 10-point PCAP touch for fingers
• Resolution 4096 x 4096
• Delay <10ms

I/O connections

• 2x USB 3.0, 2x USB 2.0
• 1x HDMI out 1x VGA out
• 2x LAN RJ45
• 2x RS232 DB9
• 2x SMA for Wi-Fi or LTE
• 1x SIM card slot
• 1x DC 5.5/2.5mm connector 12-36VDC
• 1x 3.5mm Audio I/O

For more technical details and options see datasheet
