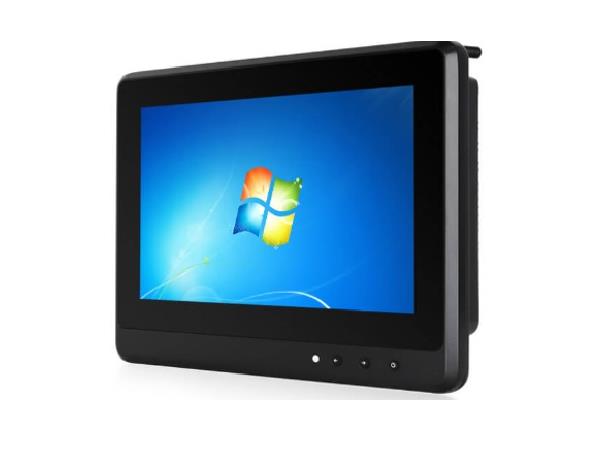

12,1" Forklift/Vehicle PanelPC.
Standard is without OS installed (Can be added on request)
Contact sales for different size alternatives

Internals

·       Motherboard: CX-J4125

·       CPU: Intel Celeron J4125, 2,0Ghz

·       RAM: 4GB

·       SSD: 128GB mSATA

·       ACC module for ignition control

Display

·       12,1” LCD Display

·       1280x800dpi 16:10 aspect ratio

·       Brightness: 1000 NITS

·       10-point Pcap touch

·       MTBF 50000h

I/O Connections

·       2x SMA antennas for WIFI

·       Bluetooth

4-pin M12 connector with cord for connecting:

·       Power 12-36VDC Red (+) Black (-) Yellow for ACC (+)

·       1x COM (RS232)

·       2x USB-A

Environment

·       Operating temperature -10°C to +60°C

·       Storage temperature -40°C to +85°C

·       Humidity 20% to 95%

Power

·       12-36VDC

·       max 45W power consumption

Mechanical

·       IP65 front

·       Aluminiumchassi

·       Buttons on the front for power and brightness controls

·       7H tempered glass class A

·       Weight: around 4,3kg

·       VESA 75/100mm

For more technical details/options see datasheet.
