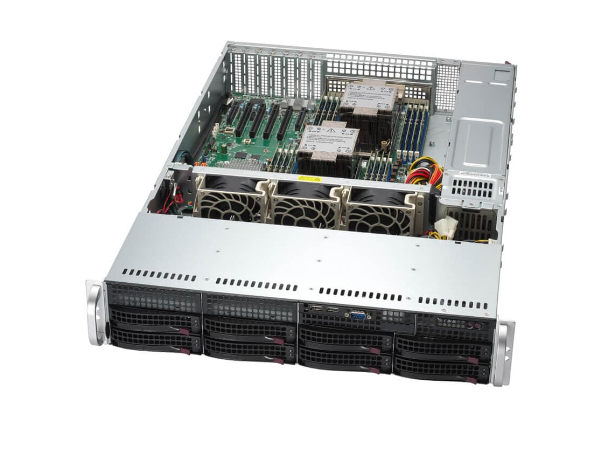

Mainstream SuperServer SYS-621P-TRT

2U Mainstream with 6 PCIe 5.0 slots, 10G

Product nr: 138746
Mainstream SuperServer SYS-621P-TRT 2U Mainstream with 6 PCIe 5.0 slots, 10G
Product SKUs

SuperServer SYS-621P-TRT

Motherboard

Super X13DEI-T

Processor

CPU

Note

  • Supports up to 300W TDP CPUs (Air Cooled)
System Memory

Memory

  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

Memory Voltage

  • 1.1V
On-Board Devices

SATA

  • SATA (6Gbps)

Chipset

  • Intel® C741

Network Connectivity

Input / Output

LAN

  • 1 RJ45 1 GbE Dedicated BMC LAN port

USB

  • 2 USB 2.0 ports(front)
  • 4 USB 3.0 ports(rear)

Video

  • 1 VGA port

Serial

  • 1 COM port(Rear)
  • 1 COM port(Front)

DOM

  • 2 SuperDOM (Disk on Module) ports

TPM

  • 1 TPM Onboard/port 80
System BIOS

BIOS Type

  • AMI 32MB SPI Flash EEPROM

Management

Software

Power configurations

  • ACPI/APM Power Management
Security

Hardware

  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring

CPU

  • Monitors for CPU Cores, Chipset Voltages, Memory

FAN

  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors

Temperature

  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis

Form Factor

  • 2U Rackmount

Model

  • CSE-825BTS-R1K23LPP1
Dimensions and Weight

Height

  • 3.5" (89 mm)

Width

  • 17.2" (437 mm)

Depth

  • 25.5" (647 mm)

Package

  • 11.4" (H) x 26.7" (W) x 34.5" (D)

Weight

  • Gross Weight: 69 lbs (31.2 kg)
  • Net Weight: 36.38 lbs (16.5 kg)

Available Color

  • Black
Front Panel

LED

  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)

Buttons

  • Power On/Off
  • System Reset
Expansion Slots

PCI-Express (PCIe) Configuration

M.2

  • 2 M.2 PCIe 4.0 x2 NVMe slots (M-key)
Drive Bays / Storage

Drive Bays Configuration

  • Default: Total 8 bays
    • 4 front hot-swap 3.5" NVMe*/SAS*/SATA drive bays
    • 4 front hot-swap 3.5" SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables)

M.2

Peripheral Bays

  • 1 slim DVD bay (optional)
System Cooling
Fans
  • 3 middle 8cm Fan(s)
Power Supply
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)

76 x 40 x 336 mm

Input

1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)

+12V

Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)

5V SB

Max: 4A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

ROHS

  • RoHS Compliant

Environmental Spec.

  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
