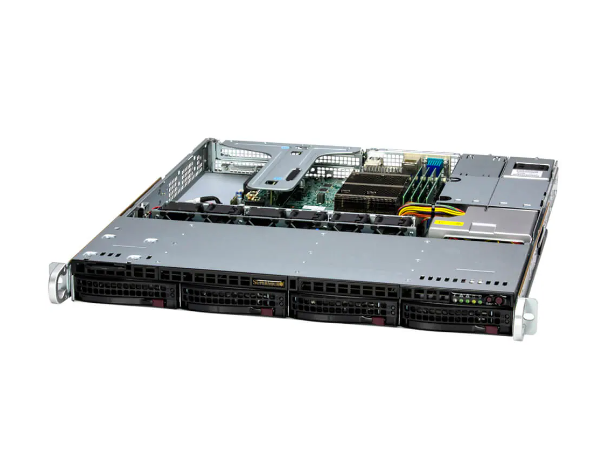

UP SuperServer SYS-511R-M

1U Mainstream server with 4 hotswap 3.5"

Product nr: 138745
UP SuperServer SYS-511R-M 1U Mainstream server with 4 hotswap 3.5"
Product SKUs

SuperServer SYS-511R-M

Motherboard

Super X13SCH-SYS

Processor

CPU

  • Single processor(s)
  • Intel® Xeon® E-2400 series Processors and 12th Gen. Pentium® Processors

Core Count

  • Up to 8C/16T; Up to 24MB Cache

Note

  • Supports up to 95W TDP CPUs (Air Cooled)
System Memory

Memory

  • Slot Count: 4 DIMM slots/2 Channels
  • Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM

Memory Voltage

  • 1.1V
On-Board Devices

SATA

  • SATA (6Gbps) ; RAID 0/1/5/10 support

Chipset

  • Intel® C266

Network Connectivity

Input / Output

LAN

  • 2 RJ45 1 GbE LAN ports
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)

USB

  • 4 USB 2.0 ports(header)
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 ports(Header)
  • 1 USB 3.2 Gen1 Type-A port(Header)

Video

  • 1 VGA port

Serial

  • 1 COM port(Rear)
  • 1 COM port(Header)

TPM

  • 1 TPM header
System BIOS

BIOS Type

  • AMI 32MB SPI Flash EEPROM
Management

Software

Power configurations

  • ACPI/APM Power Management
Security

Hardware

  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring

CPU

  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 6 + 1 Phase-switching voltage regulator

FAN

  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors

Temperature

  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis

Form Factor

  • 1U Rackmount

Model

  • CSE-813MF2TS-R0RCNBP
Dimensions and Weight

Height

  • 1.7" (43 mm)

Width

  • 17.2" (437 mm)

Depth

  • 19.98" (507 mm)

Package

  • 8.5" (H) x 24" (W) x 29.5" (D)

Weight

  • Gross Weight: 30.4 lbs (13.8 kg)
  • Net Weight: 17.6 lbs (8 kg)

Available Color

  • Black
Front Panel

LED

  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information

Buttons

  • Power On/Off
  • System Reset
Expansion Slots

PCI-Express (PCIe) Configuration

  • Default
    • 1 PCIe 5.0 x8 FHHL slot
    • 1 PCIe 5.0 x8 LP slot
  • Option A
    • 1 PCIe 5.0 x16 FHHL slot
Drive Bays / Storage

Drive Bays Configuration

  • Default: Total 4 bays
    • 4 front hot-swap 3.5" SAS*/SATA drive bays
  • (*SAS support may require additional storage controller and/or cables)

M.2

Peripheral Bays

  • 2 2.5" bays (optional)
System Cooling

Fans

  • 2 AOC cooling Fan(s) (optional)
  • 4 middle cooling PWM 40x40x28mm Fan(s)

Air Shroud

  • 1 Air Shroud
Power Supply
1x 600W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)

54.5 x 40.25 x 220 mm

Input

600W: 100-127Vac / 50-60Hz
600W: 200-240Vdc / 50-60Hz
600W: 200-240Vac / 50-60Hz

+12V

Max: 50A / Min: 0A (100Vac-127Vac)
Max: 50A / Min: 0A (200Vdc-240Vdc)
Max: 50A / Min: 0A (200Vac-240Vac)

5V SB

Max: 4A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

Environmental Spec.

  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
