SuperChassis 826BE1C-R920LPB2U, ATX, 12x3,5" Hot-Swap SAS/SATA

Product SKUs
SuperChassis 826BE1C-R920LPB

Form Factor
2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

Processor Support
Dual and Single Intel® and AMD processors

Dimensions
Height	3.5" (89 mm)
Width	17.2" (437 mm)
Depth	25.5" (647 mm)
Gross Weight	55 lbs (24.95 kg)
Net Weight	40 lbs (18.14 kg)
Packaging (W x H x L)	26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
Available Color	Black

Expansion Slots
7x Low-profile expansion slot(s)

Drive Bays
Optional 2x 2.5" hot-swap drive bay 12x 3.5" hot-swap SAS/SATA drive bay with SES3

Backplane
12-Port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD

Front Panel
Button	Power On/Off button System Reset button
LED	Power status LED HDD activity LED 2 Network Activity LEDs Unit Identification (UID) LED Fan Fail/System Over Heat LED

Systems Cooling
Fans	3x 8cm high-performance PWM fan(s)

System Monitoring
Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

Power Supply
1U 920W Redundant Platinum Super Quiet power supply W/PMbus
Power Efficiency	94%
Total Output Power and Input	920W with Input 100 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	336 x 76 x 40 mm
Output Type	Backplanes (gold finger)
+12V	Max: 75A / Min: 1A (100Vac - 240Vac)
+5Vsb	Max: 4A / Min: 0A
Power Distributor	PDB-PT826-8824 O/P: 12V/135 +5V Max: 40A +3.3V Max: 24A -12V Max: 0.6A
Certification	Platinum Certified

Regulatory (Power Supply)
Power Supply Safety / EMC	BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL

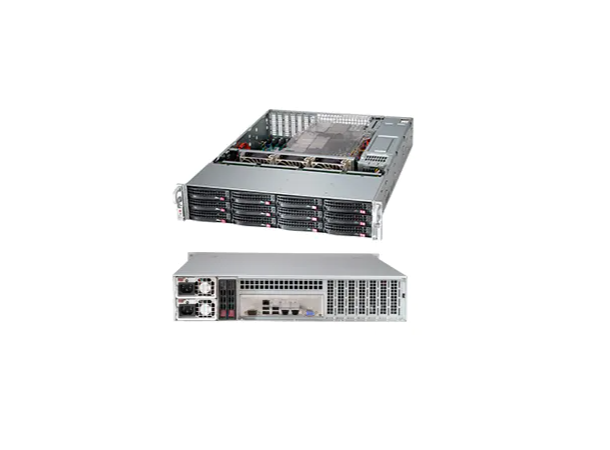

SuperChassis 826BE1C-R920LPB 2U, ATX, 12x3,5" Hot-Swap SAS/SATA

Accessories

Alternatives

Articles

Number of articles found:

COMPUTER COMPONENTS

SuperChassis 826BE1C-R920LPB

2U, ATX, 12x3,5" Hot-Swap SAS/SATA

Product nr: 138741

SuperChassis 826BE1C-R920LPB 2U, ATX, 12x3,5" Hot-Swap SAS/SATA

Description

Product SKUs
SuperChassis 826BE1C-R920LPB

Form Factor
2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

Processor Support
Dual and Single Intel® and AMD processors

Dimensions
Height	3.5" (89 mm)
Width	17.2" (437 mm)
Depth	25.5" (647 mm)
Gross Weight	55 lbs (24.95 kg)
Net Weight	40 lbs (18.14 kg)
Packaging (W x H x L)	26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
Available Color	Black

Expansion Slots
7x Low-profile expansion slot(s)

Drive Bays
Optional 2x 2.5" hot-swap drive bay 12x 3.5" hot-swap SAS/SATA drive bay with SES3

Backplane
12-Port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD

Front Panel
Button	Power On/Off button System Reset button
LED	Power status LED HDD activity LED 2 Network Activity LEDs Unit Identification (UID) LED Fan Fail/System Over Heat LED

Systems Cooling
Fans	3x 8cm high-performance PWM fan(s)

System Monitoring
Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

Power Supply
1U 920W Redundant Platinum Super Quiet power supply W/PMbus
Power Efficiency	94%
Total Output Power and Input	920W with Input 100 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	336 x 76 x 40 mm
Output Type	Backplanes (gold finger)
+12V	Max: 75A / Min: 1A (100Vac - 240Vac)
+5Vsb	Max: 4A / Min: 0A
Power Distributor	PDB-PT826-8824 O/P: 12V/135 +5V Max: 40A +3.3V Max: 24A -12V Max: 0.6A
Certification	Platinum Certified

Regulatory (Power Supply)
Power Supply Safety / EMC	BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL
