Product SKUs

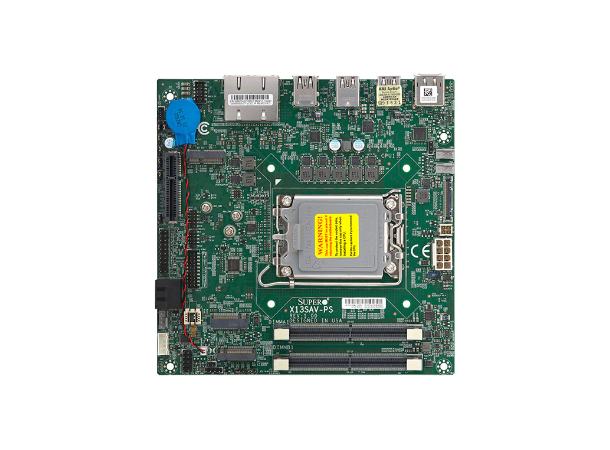

MBD-X13SAV-PS

Physical Stats

Form Factor

• Mini-ITX

Dimension

• 6.7" x 6.7" (17.02cm x 17.02cm)

Processor

CPU

• 12th Generation Intel ADL-PS CPU model i7-xxxxxUL(or HL),
   i5-xxxxxUL(or HL), i3-xxxxxUL(or HL), Celeron 7305L Processor
• Single Socket LGA-1700 supported

Core

• Up to 14 cores

System Memory

Memory Capacity

• 2 DIMM slots
• Up to 64GB Unbuffered non-ECC SODIMM, DDR5-4800MHz

Memory Type

• 4800 MT/s non-ECC DDR5 SODIMM Unbuffered

DIMM Sizes

• 8GB, 16GB, 32GB

Memory Voltage

• 1.1V

On-Board Devices

Chipset

• System on Chip

SATA

• System on Chip controller for 2 SATA3 (6 Gbps) ports

Graphics

• 4 Independent Displays thru DP/HDMI/eDP/TYPE C

Network Controllers

• Dual LAN with Intel® Ethernet i225LM

Input / Output

SATA

• 2 SATA3 (6Gbps) port(s)

USB

• 2 USB 3.2 Gen2 port(s) (2 rear type C)
• 8 USB port(s) (4 via header; 4 rear type A)

Video Output

• 1 HDMI port(s), 1 DP (DisplayPort) port(s)

Serial Port

• 2 COM Port(s) (2 header RS232/422/485)

Expansion Slots

PCIe

• 1 PCIe 4.0 x4

M.2

• M.2 Interface: 1 PCIE x1/USB2; 1 PCIE x2/USB3/USB2;
  1 PCIe 4.0 x4
• Form Factor: 2230, 3052, 2280
• Key: E-Key, B-Key, M-Key

System BIOS

BIOS Type

• AMI UEFI

BIOS Features

• ACPI 6.1
• SMBIOS 3.0 or later
• PCI FW 3.0
• UEFI 2.7
• RTC (Real Time Clock) Wakeup

Management

System Management Software

• Wake-on-LAN, Watchdog

Power Configurations

• Power-on mode for AC power recovery,
  ACPI Power Management,
  ATX Power connector,
  CPU thermal trip support for processor protection,
   +12V DC Power Input

Security

Hardware

• Trusted Platform Module (TPM) 2.0

PC Health Monitoring

Voltage

• VBAT, System temperature, PCH temperature, CPU temperature,
  Chipset Voltage, 3 -fan status, +5V, +3.3V, +12V,
  Monitors CPU Core Voltages

FAN

• 3x 4-pin fan headers (up to 3 fans)
• PWM fan speed control
• Thermal Control for 3 Fan Connectors

Other Features

• WOL
• ATX Power connector
• ACPI power management
• 8-pin 12v DC power connector
• 12V DC or ATX Power Source

Operating Environment

Operating Temperature Range

• 0°C - 60°C (32°F - 140°F)

Non-Operating Temperature Range

• -40°C - 85°C (-40°F - 185°F)

Operating RelativHumidity Range

• 10% - 85% (non-condensing)

Non Operating Relative Humidity Range

• 10% - 95% (non-condensing)
