Product SKUs

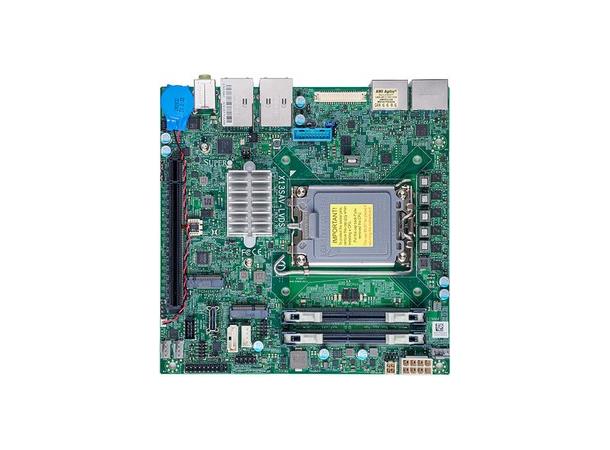

MBD-X13SAV-LVDS

Physical Stats

Form Factor

• Mini-ITX

Dimension

• 6.7" x 6.7" (17.02cm x 17.02cm)

Processor

CPU

• 13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3
  Pentium/Celeron Processor
• Single Socket LGA-1700 supported

Core

• Up to 24 cores

System Memory

Memory Capacity

• 2 DIMM slots
• Up to 64GB Unbuffered non-ECC SODIMM, DDR4-3200MHz

Memory Type

• 3200/2933/2666 MT/s non-ECC DDR4 SODIMM Unbuffered

DIMM Sizes

• 4GB, 8GB, 16GB, 32GB

Memory Voltage

• 1.2V

On-Board Devices

Chipset

• Intel Q670E

SATA

• Intel Q670E controller for 5 SATA3 (6 Gbps) ports;
  RAID 0,1,5,10

Audio

• ALC 888S HD Audio

Graphics

• 1 Intel® UHD Graphics port(s)
• 4 Independent Displays thru HDMI 2.0b/HDMI1.4/DP/LVDS

Network Controllers

• Single LAN with Intel® Ethernet i225LM
• Single LAN with Intel® Ethernet Controller I210-AT

Input / Output

SATA

• 5 SATA3 (6Gbps) port(s) (1 header, 4 via Oculink)

USB

• 2 USB 2 port(s) (2 via header)
• 4 USB 3.2 Gen2 port(s) (4 rear type A)
• 2 USB 3.2 Gen1 port(s) (2 via header)

Video Output

• 1 HDMI 2.0b port(s), 2 DP (DisplayPort) port(s),
   1 HDMI port(s), 1 LVDS port(s)

Serial Port

• 1 COM Port(s) (1 header)

TPM

• TPM Header & Chip both

Expansion Slots

PCIe

• 1 PCIe 5.0 x16 slots (16/NA or 8/8)

M.2

• M.2 Interface: 1 PCIe 4.0 x4;
   1 CNVi/PCIe 3.0 x1/USB2
• Form Factor: 2280, 2230
• Key: M-Key, E-Key

System BIOS

BIOS Type

• AMI UEFI

BIOS Features

• ACPI 6.1
• SMBIOS 3.0 or later
• PCI FW 3.0
• UEFI 2.7
• RTC (Real Time Clock) Wakeup

Management

System Management Software

• Wake-on-LAN, Watchdog

Power Configurations

• Power-on mode for AC power recovery, ACPI Power Management, ATX Power connector, CPU thermal trip support for processor protection, +12V DC Power Input

Security

Hardware

• Trusted Platform Module (TPM) 2.0

PC Health Monitoring

Voltage

• VBAT, System temperature, System level control, PCH temperature, HT, CPU temperature, Chipset Voltage, 3 -fan status, +3.3V, +1.8V, Monitors CPU Core Voltages

LED

• Power LED

Temperature

• Thermal Control for 3 Fan Connectors

FAN

• 3x 4-pin fan headers (up to 3 fans)
• System level control
• PWM fan speed control
• Fan speed control
• 3 fans with tachometer monitoring

Other Features

• WOL, System level control, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source

Operating Environment

Operating Temperature Range

• 0°C - 60°C (32°F - 140°F)

Non-Operating Temperature Range

• -40°C - 85°C (-40°F - 185°F)

Operating Relative Humidity Range

• 10% - 85% (non-condensing)

Non Operating Relative Humidity Range

• 10% - 95% (non-condensing)
