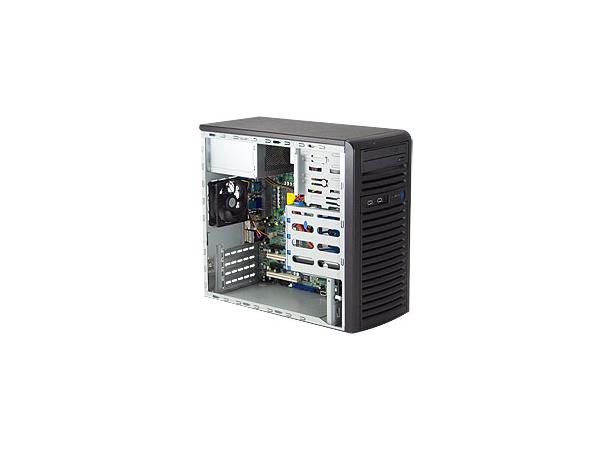

Supermicro SC731i-300 Mini-tower chassis

M-ATX, 300W PSU

Product nr: 116088

Supermicro SC731i-300 Mini-tower chassis M-ATX, 300W PSU

Description

Product SKUs

CSE-731i-300B	SuperChassis 731i-300B (Black)



Form Factor

Mini-Tower & chassis support for max. motherboard size - 9.6" x 9.6" micro-ATX


Processor Support

Supports single Intel® / AMD processor


Dimensions

Width	7.25" (184 mm)
Height	14.25" (362 mm)
Depth	16.75" (425 mm)
Weight	16 lbs (7.26 kg); Gross Weight: 20 lbs
Packaging	11" (W) x 20" (H) x 21" (D) 280mm (W) x 508mm (H) x 533mm (D)
Available Colors	Black


Expansion Slots

Supports 4x full-height, full-length I/O expansion slots


Drive Bays

Internal	4x 3.5" tool-less HDD trays SAS or enterprise SATA HDD only recommended
External	2x 5.25" external drive bays 1x 3.5" external drive bay (OEM option)


Front Panel

Buttons	Power On/Off button
LEDs	Power LED Hard drive activity LED Network activity LED System Overheat LED
Ports	2x Front side USB ports (USB 2.0 ready)


Motherboard(s) for CSE-731i-300B


A1SAM-2550F	A1SAM-2750F
A1SRM-2558F	A1SRM-2758F
C7H170-M	C7Z170-M
C7Z170-SQ	X10SL7-F
X10SLH-F	X10SLL+-F
X10SLL-F	X10SLL-S
X10SLL-SF	X10SLM+-F
X10SLM+-LN4F	X10SLM-F
X10SLQ	X10SLQ-L
X8SIL	X8SIL-F


Server(s) for SC731i-300B


5038D-I


System Cooling

Fans	1x 9cm (rear) PWM fan w/ tool-less design 1x 8cm (front) cooling fan (optional) Optimized Cooling Technology at 25dB Whisper-Quiet Operation



Operating Environment (System)

Operating Temperature Range	5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range	-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range	8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply

300W AC power supply w/ PFC
AC Voltage	100 - 240V, 50-60Hz, 5 Amp
DC Output	5V + 12V + 3.3V - 12V < 290W
+5V	19 Amp
+5V standby	2.0 Amp
+12V	11 Amp + 11.5 Amp
-12V	0.15 Amp
+3.3V	16.0 Amp
Certification	Bronze Certified [ Test Report ]


Regulatory (Power Supply)

Power Supply Safety / EMC	USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant CCC, BSMI
