Planet IGS-800T

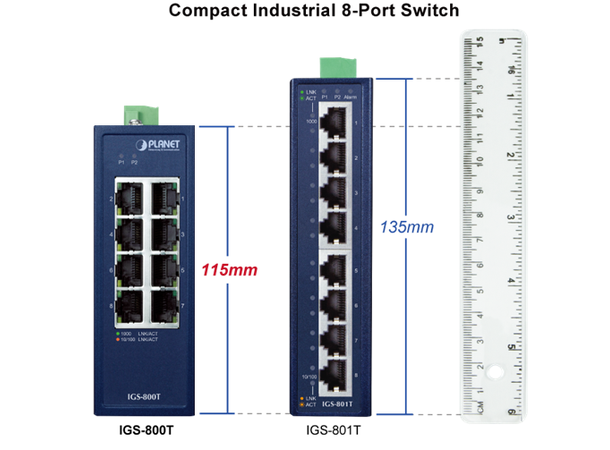

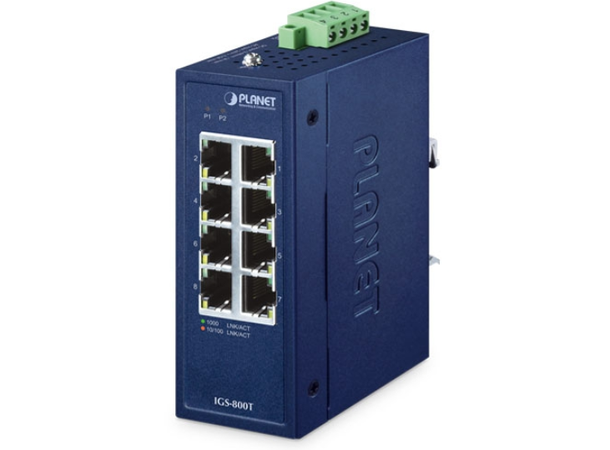

Planet IGS-800T
IP30 Compact size 8-Port Gigabit Switch
Product nr:
138556
Add to wish list
IGS-800T_Datasheet
Description
Support
Physical Port
8-port 10/100/1000BASE-T Gigabit ethernet RJ45 with auto MDI/MDI-X function
Layer 2 Features
Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standard
Supports auto-negotiation and 10/100Mbps half/full duplex mode
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause
frame flow control (full-duplex)
High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
Backplane (switching fabric): 16Gbps
Integrated address look-up engine, supporting 4K absolute MAC addresses
9K jumbo packet size
Automatic address learning and address aging
CSMA/CD Protocol
Industrial Case and Installation
IP30 metal case
DIN rail and wall-mount design
9 to 48V DC, redundant power with polarity reverse protect function
24V AC power input acceptable
Supports 6000 VDC Ethernet ESD protection
-40 to 75 degrees C operating temperature
Free fall, shock-proof and vibration-proof for industries
Producer
IGS-800T_Datasheet
Alternatives
IGS-801T 8-port Din-rail Switch
8xGbE, 12-48VDC, 24VAC, -40-75 degree C
Planet ISW-800T
IP30 Compact size 8-Port 10/100TX Fast E
