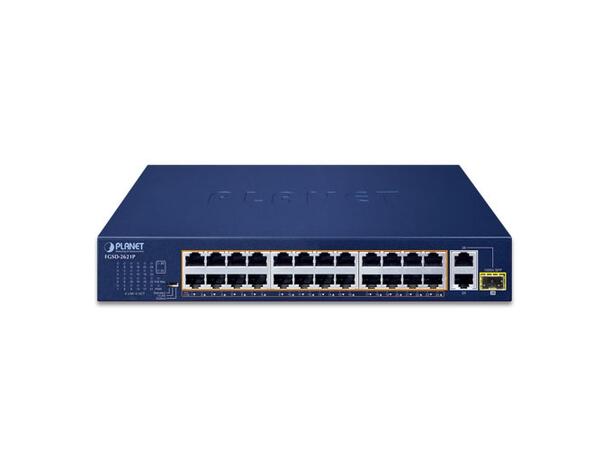

Planet FGSD-2621P
Planet FGSD-2621P
24-Port 10/100TX 802.3at PoE
Product nr:
138099
Add to wish list
Description
Hardware Specifications
Fast Ethernet Copper Ports
24 x 10/100BASE-TX RJ45 auto-MID/MDI-X Port
Supports IEEE 802.3at PoE+ Injector
Gigabit Ethernet Copper Ports
2 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
(Port 26 shared with SFP port)
Gigabit SFP Ports
1 x 1000BASE-SX/LX/BX SFP interface (shared with Port 26)
DIP Switch
Selectable operation mode
Standard
VLAN
Extend
Dimensions (W x D x H)
280 x 180 x 44 mm (1U height)
Enclosure
Metal
Weight
1870g
Power Requirements
100~240V AC, 50/60Hz, 5A max.
Power Consumption/Dissipation
Max. 217 watts/740 BTU
Thermal Fan
1
ESD Protection
Contact discharge of ±6KV DC, Air discharge of ±8KV DC
Surge Protection
Differential Mode ±4KV, Common Mode ±6KV
Installation
Desktop or rack-mount installation
LED
System:
Power (
Green
)
PoE Max. (
Green
)
10/100/1000T RJ45 Interfaces
10/100/1000 LNK / ACT (
Green
)
PoE-in-Use (
Amber
)
1000X SFP Interfaces
1000 LNK / ACT (
Green
)
Switching
Switch Architecture
Store-and-Forward
Switch Fabric
8.8Gbps/non-blocking
Switch Throughput@64bytes
6.5Mpps
MAC Address Table
16K entries
Jumbo Frame
16K bytes
Flow Control
IEEE 802.3x pause frame for full duplex; back pressure for half duplex
Power over Ethernet
PoE Standard
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Injector Ports
24
PoE Power Supply Type
End-span: 1/2 (+), 3/6 (-)
PoE Power Output
Per port 55V DC, 600mA. max. 32 watts
PoE Power Budget
185 watts
Number of PDs, 7 watts
24
Number of PDs, 15.4 watts
12
Number of PDs, 30 watts
6
Standards Conformance
Regulatory Compliance
FCC Part 15 Class A, CE
Standards Compliance
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy-Efficient Ethernet
Environment
Operating
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5~ 95% (non-condensing)
Storage
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
