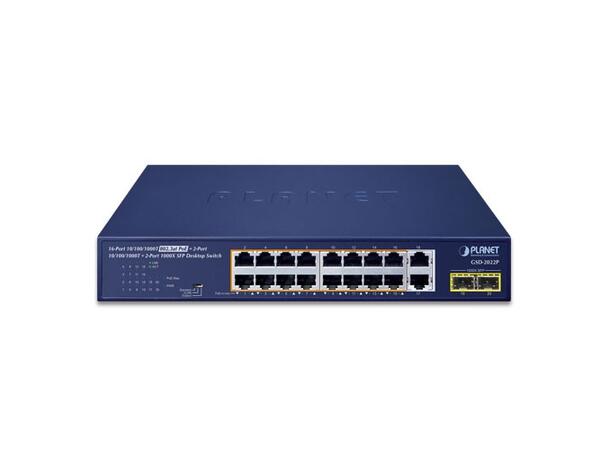

Planet GSD-2022P
Planet GSD-2022P
16-Port 10/100/1000T 802.3at PoE
Product nr:
138094
Add to wish list
Description
Hardware Specifications
10/100/1000BASE-T Copper Ports
18 auto MDI/MDIX
1000BASE-X SFP/mini-GBIC Slots
2
DIP Switch
Selectable operation mode
? Standard
? VLAN
? Extend
LED Indicators
System
Power (Green)
10/100/1000T RJ45 Interfaces
10/100/1000 LNK / ACT (Green)
PoE-in-Use(Amber)
1000X SFP Interfaces
1000 LNK / ACT (Green)
Dimensions (W x D x H)
280 x 180 x 44 mm (1U height)
Enclosure
Metal
Weight
1810g
Power Requirements
100~240V AC, 50/60Hz, 5A max.
Power Consumption/Dissipation
Max. 201 watts/686 BTU
Thermal Fan
1
ESD Protection
Contact discharge of ±6KV DC,
Air discharge of ±8KV DC
Surge Protection
±6KV
Installation
Desktop or rack-mount installation
Switching
Switch Architecture
Store-and-Forward
Switch Fabric
40Gbps/non-blocking
Switch Throughput@64bytes
29.76Mpps
MAC Address Table
8K entries
Jumbo Frame
9216 bytes
Flow Control
IEEE 802.3x pause frame for full duplex; back pressure for half duplex
Power over Ethernet
PoE Standard
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Injector Ports
16
PoE Power Supply Type
End-span/Mid-span: 1/2/4/5 (+), 3/6/7/8 (-)
PoE Power Output
Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
PoE Power Budget
185 watts
Number of PDs, 7 watts
16
Number of PDs, 15.4 watts
12
Number of PDs, 30 watts
6
Standards Conformance
Regulatory Compliance
FCC Part 15 Class A, CE
Standards Compliance
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy-Efficient Ethernet
Environment
Operating
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
