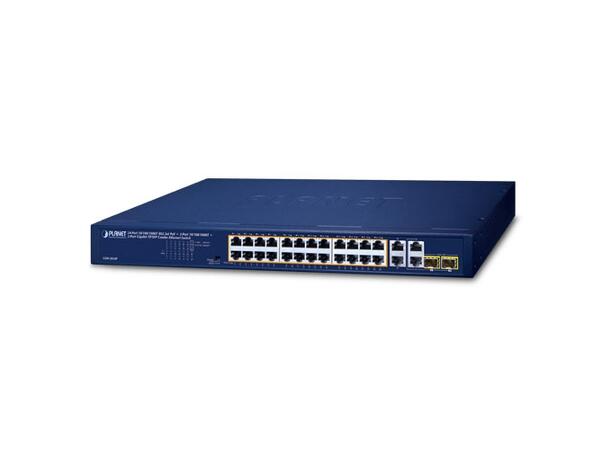

Planet GSW-2824P
Planet GSW-2824P
24-Port 10/100/1000T 802.3at PoE
Product nr:
138092
Add to wish list
Description
Hardware Specifications
10/100/1000BASE-T Copper Ports
28 auto MDI/MDIX
1000BASE-X SFP/mini-GBIC Slots
2
DIP Switch
Selectable operation mode
- Standard
- VLAN
- Extend
Dimensions (W x D x H)
441.5 x 207.3 x 44 mm (1U height)
Enclosure
Metal
Weight
3022g
Power Requirements
100~240V AC, 50/60Hz, 5A max.
Power Consumption/Dissipation
Max. 278 watts/948 BTU
Thermal Fan
2
ESD Protection
Contact discharge of ±6KV DC,
Air discharge of ±8KV DC
Surge Protection
±6KV
Installation
Desktop or rack-mount installation
LED Indicators
System
Power (Green)
10/100/1000T RJ45 Interfaces
10/100 LNK / ACT(Amber)
1000 LNK / ACT (Green)
PoE-in-Use(Amber)
1000X SFP Interfaces
1000 LNK / ACT (Green)
Switching
Switch Architecture
Store-and-Forward
Switch Fabric
56Gbps
Switch Throughput@64bytes
41.66Mpps
MAC Address Table
8K entries
Jumbo Frame
9216 bytes
Flow Control
IEEE 802.3x pause frame for full duplex; back pressure for half duplex
Power over Ethernet
PoE Standard
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Injector Ports
24
PoE Power Supply Type
End-span: 1/2 (+), 3/6 (-)
PoE Power Output
Per port 54±1V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per port 54±1V DC, 600mA. max. 32 watts (IEEE 802.3at)
PoE Power Budget
250 watts
Number of PDs, 7 watts
24
Number of PDs, 15.4 watts
16
Number of PDs, 30 watts
8
Standards Conformance
Regulatory Compliance
FCC Part 15 Class A, CE
Standards Compliance
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet
Environment
Operating
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5~ 95% (non-condensing)
Storage
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
