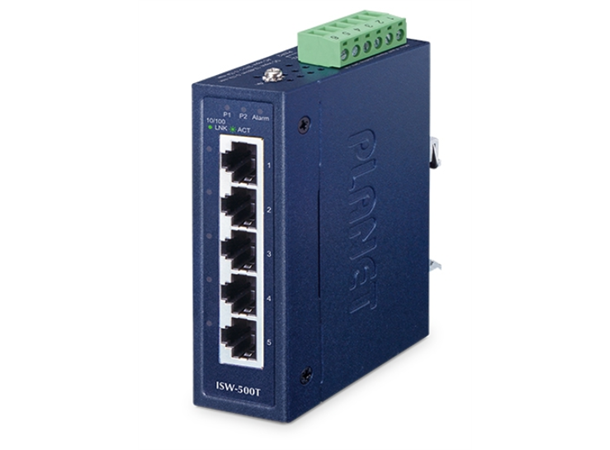

Physical Port

• 5-port 10/100BASE-TX RJ45 with auto-MDI/MDI-X function

Layer 2 Features

• Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standard
• Supports auto-negotiation and 10/100Mbps half/full duplex mode
• PROFINET traffic pass-through with QoS
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause
  frame flow control (full-duplex)
• Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
• IEEE 802.1p CoS
• Supports 1K MAC address
• Automatic address learning and address aging

Industrial Case and Installation

• IP30 metal case
• DIN-rail and wall-mount designs
• 12 to 48V DC, redundant power with polarity reverse protect function
• 24V AC power input acceptable
• Supports 6000 VDC Ethernet ESD protection
• -40 to 75 degrees C operating temperature
• Free fall, shock-proof and vibration-proof for industries
