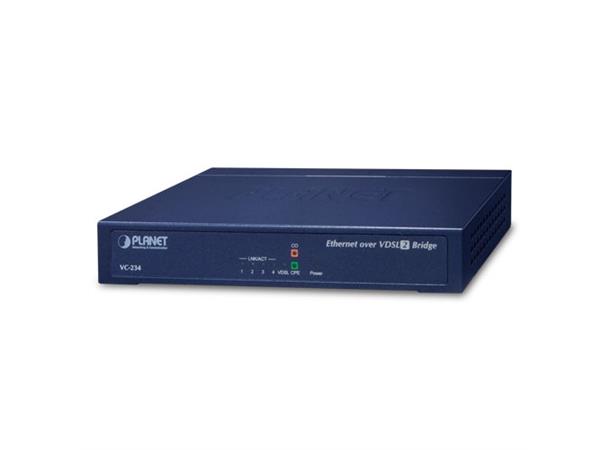

VC-234 Ethernet to VDSL2
Planet 4-port 100/100 Mbps Converter
Hardware Specifications

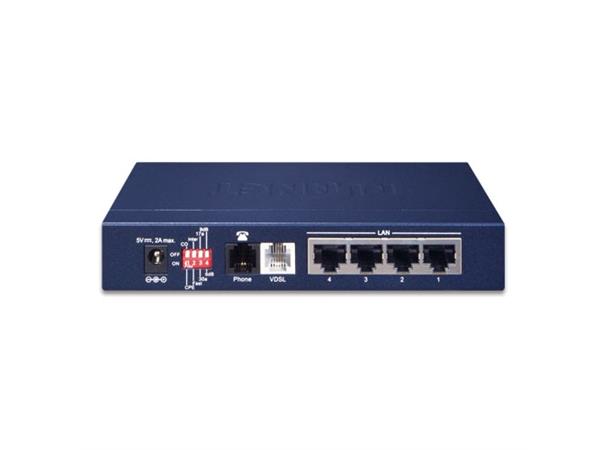

Ports
10/100Base-TX: 4 RJ-45, Auto-Negotiation and Auto-MDI/MDI-X
VDSL:1 RJ-11, female Phone Jack
PHONE:1 RJ-11, Built-in splitters for POTS connection
DIP Switch
4 position DIP switch
Functionality
•
CO
/
CPE
mode select
• Selectable
fast
and interleaved mode
• Selectable target
17a
/
30a
profiles
• Selectable target
SNR mode
Encoding
• VDSL-DMT
- ITU-T G.993.1 VDSL
- ITU-T G.997.1
- ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
LED Indicators
• One Power
• 4 for RJ-11/VDSL2
• 1 for per RJ-45 10/100Base-TX port
Cabling
Ethernet
10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft)
100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft)
VDSL
Twisted-pair telephone wires (AWG24 or better) up to 1.4km
Performance* (Downstream / Upstream)
• 17a profile
300m -> 99/70Mbps
400m -> 99/60Mbps
600m -> 90/45Mbps
800m -> 50/28Mbps
1000m -> 40/12Mbps
1200m -> 20/7Mbps
1400m -> 20/4Mbps
• 30a profile
300m -> 100/100Mbps
400m -> 90/90Mbps
600m -> 69/55Mbps
800m -> 48/9Mbps
Power Requirements
5V DC, 2A
Power Consumption
7.2 Watts/ 24 BTU
Dimensions (W x D x H)
155 x 86 x 26 mm
Weight
368g
Environment
Operating
Temperature: 0 ~ 50 degrees C
Relative Humidity: 10 ~ 90% (non-condensing)
Storage
Temperature: -10 ~ 70 degrees C
Relative Humidity: 10 ~ 90% (non-condensing)
Switch Specifications
Switch Processing Scheme
Store-and-Forward
Address Table
2K entries
Flow Control
Back pressure for half duplex
IEEE 802.3x Pause Frame for full duplex
Switch fabric
0.8Gbps
Throughput (packet per second)
0.59Mpps
Network cables
10/100Base-TX:
2-Pair UTP Cat. 3,4, 5 (100meters, max.)
EIA / TIA-568 100-ohm STP (100meters, max.)
Standard Conformance
Regulation Compliance
FCC Part 15 Class A, CE
Standards Compliance
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
ITU-T
- G.993.1 (VDSL)
- G.997.1
- G.993.2 VDSL2 (Profile 17a/30a)
* The actual data rate will vary on the quality of the copper wire and environment factors.
