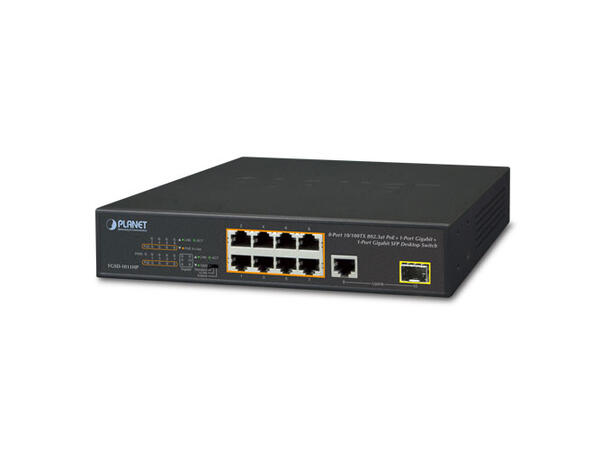

Planet FGSD-1011HP
Planet FGSD-1011HP
8-Port 10/100TX 802.3at PoE
Product nr:
126567
Add to wish list
FGSD-1011HP.pdf
Description
Support
Hardware Specifications
10/100Mbps Ports
8 10/100BASE-TX MDI/MDI-X RJ45 ports
Gigabit Ports
1 10/100/1000BASE-T MDI/MDI-X RJ45 port
SFP Slot
1 100/1000BASE-X SFP/mini-GBIC interface
PoE Inject Port
8-port with 802.3af/at PoE injector function (Port-1 to Port-8)
LED Display
System:
Power (
Green
)
10/100BASE-TX RJ45 Interface:
PoE (
Orange
, Port-1 to Port-8)
LNK/ACT (
Green
, Port-1 to Port-8)
10/100/1000BASE-T RJ45 Interface:
LNK/ACT (
Green
, Port 9)
100/1000BASE-X SFP Interface:
LNK/ACT (
Green
, Port 10)
DIP Switch
100m distance in standard mode
250m distance in extend mode (based on the cable category)
Power Requirements
AC 100~240V, 2.5A max.
Power Consumption
122 watts, 416.2 BTU
Dimensions (W x D x H)
220 x 150 x 44 mm
Weight
1223 g
ESD Protection
Contact discharge of ±6KV DC
Air discharge of ±8KV DC
Surge Immunity
±4KV
Switching Specifications
Switch Architecture
Store and Forward switch architecture
MAC Address Table
8K MAC address table with auto learning function
Switch Fabric
5.6Gbps
Switch Throughput
4.16Mpps @64bytes
Maximum Packet Size
9K bytes
Flow Control
Back pressure for half duplex; IEEE 802.3x pause frame for full duplex
Power over Ethernet
PoE Standard
IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type
End-span
Power Pin Assignment
1/2 (+), 3/6 (-)
PoE Power Output
Per Port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
Per Port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
PoE Power Budget
120 watts
Number of PDs, 7 watts
8
Number of PDs, 15.4 watts
8
Number of PDs, 30 watts
4
Standard Conformance
EMI Safety
CE, FCC
Standard Compliance
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Environment
Operating Environment
0 ~ 50 degrees C
Storage Environment
-10 ~ 70 degrees C
Operating Humidity
5 ~ 95%, relative humidity, non-condensing
Storage Humidity
5 ~ 95%, relative humidity, non-condensing
