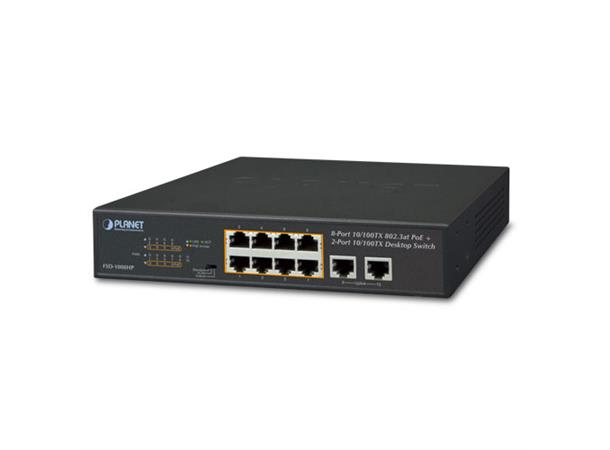

Planet FSD-1008HP
Planet FSD-1008HP
8-P 10/100TX 802.3at PoE + 2-P 10/100TX
Product nr:
126566
Add to wish list
FSD-1008HP.pdf
Description
Support
Hardware Specifications
Copper Port
10 10/100/BASE-TX MDI/MDIX Ports
PoE Injector Port
8-port with 802.3af/at PoE injector function with Port-1 to Port-8
Switch Architecture
Store-and-Forward
Switch Fabric
2Gbps/non-blocking
Switch Throughput@64 bytes
1.48Mpps@64 bytes
MAC Address Table
1K entries, automatic source address learning and aging
Maximum Frame Size
1522 bytes
Flow Control
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
LED Indicators
System
Power (
Green
)
10/100BASE-TX RJ45 interfaces
10/100Mbps LNK/ACT (
Green
)
PoE interfaces
PoE-in-Use (
Amber
)
DIP Switch
Selectable operation mode
Standard
VLAN
Extend
Dimensions (W x D x H)
220 x 150 x 43 mm (1U height)
Enclosure
Metal
Weight
1166 g
Power Requirements
AC 100~240V, 50/60Hz, 2.5A max.
Power Consumption/Dissipation
Max. 127 watts/433.3 BTU
Thermal Fan
Fanless
Power over Ethernet
PoE Standard
IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type
End-span
PoE Power Output
Per port 54V DC, 540mA. max. 30 watts
Power Pin Assignment
1/2(+), 3/6(-)
PoE Power Budget
120 watts
Max. Number of Class 2 PDs
8
Max. Number of Class 3 PDs
8
Max. Number of Class 4 PDs
4
Standards Conformance
Regulatory Compliance
FCC Part 15 Class A, CE
Standards Compliance
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment
Operating
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
