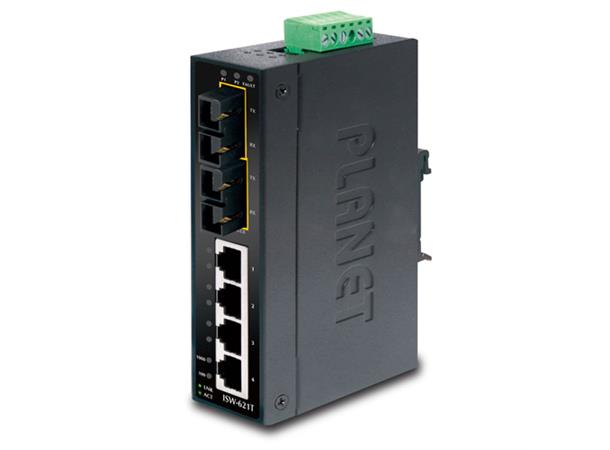

INDUSTRIAL ETHERNET SWITCHES

ISW-621TS15

4-Port 10/100Base-TX + 2-Port 100Base-FX

Product nr: 122235
69070
DatabladISW-621T
Hardware Specifications
Copper InterfacePorts
4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-X

Cable
10Base-T : 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.)
100Base-TX : 2-pair UTP Cat. 5 cable (100meters, max.)
Optical InterfacePort
2 x 100Base-FX

Cable
ISW-621T: 50/125µm / 62.5/125µm fiber
ISW-621TS15: 9/125µm fiber

Mode
ISW-621T: Multi-mode
ISW-621TS15: Single-mode

Distance
ISW-621T: 2km
ISW-621TS15: 15km

Wavelength
ISW-621T: 1310nm
ISW-621TS15: 1310nm

Launch Power
ISW-621T: Max. -14dBm, Min. -20dBm
ISW-621TS15: Max. 0dBm, Min. -20dBm

Receive Sensitivity
ISW-621T: -32dBm
ISW-621TS15: -32dBm

Max. Input Power
ISW-621T: -14dBm
ISW-621TS15: 0dBm
Dimensions (W x D x H)135 x 97 x 32 mm
Weight442g
Power Requirements12~48V DC
Redundant power with polarity reverse protection function
Power Consumption / DissipationMax. 16 watts / 54 BTU
InstallationDIN rail kit and wall mount ear
AlarmProvides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24V
Switch Specifications
Switch Processing SchemeStore-and-Forward
Address Table2K entries
Buffer1Mbit
Flow ControlBack pressure for half duplex,
IEEE 802.3x pause frame for full duplex
Switch Fabric1.2Gbps
Throughput (Packet Per Second)0.89Mpps @ 64Bytes
Standards Conformance
Standards ComplianceIEEE 802.3 Ethernet, 10Base-T
IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX
IEEE 802.3x full-duplex Flow Control
TemperatureOperating: -40~75 degrees C
Storage: -40~85 degrees C
Operating HumidityOperating: 5~90%
Storage: 5~90% (non-condensing)
Regulation ComplianceFCC Part 15 Class A, CE
Stability TestingIEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration)
