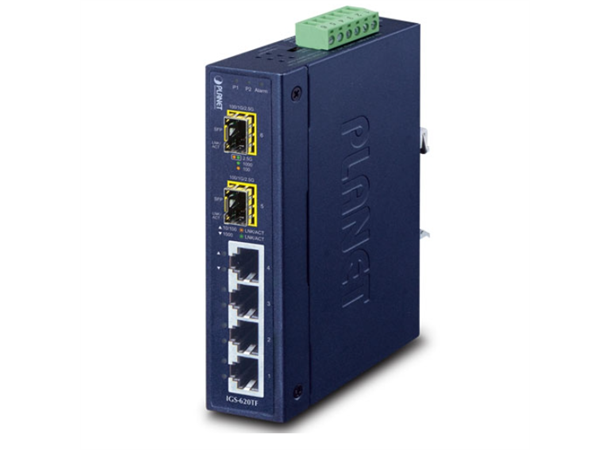

Physical Port

• Four 10/100/1000BASE-T RJ45 ports with auto MDI / MDI-X function
• Two SFP interfaces, supporting 100/1000/2500BASE-X transceiver type auto detection

Fiber Port Redundancy

• Automatically detects link status and redundancy on dual ports
  with the same connector type.
• Only primary port is active at a time, while the backup port is blocked.
• When primary port link failure occurs, the traffic will swap to backup
  port automatically.
• Once the primary-port status is back to link up, the traffic will swap
  from backup port to primary port.

Layer 2 Features

• Supports auto-negotiation and 10/100Mbps half / full duplex and
  1000Mbps full duplex mode
• High performance Store and Forward architecture, runt/CRC filtering eliminates
  erroneous packets to optimize the network bandwidth
• IEEE 802.3x flow control for full duplex operation and back pressure for
  half duplex operation
• 9K Jumbo Frame size support
• Backplane (Switching Fabric): 18Gbps
• Integrated address look-up engine, supporting 4K absolute MAC addresses
• Automatic address learning and address aging
• IEEE 802.1Q VLAN transparency
• CSMA/CD Protocol

Industrial Case and Installation

• Slim IP30 metal case protection
• DIN-rail, wall-mount or side wall-mount design for redundant power design
  • 12 to 48V DC, redundant power with reverse polarity protection
  • AC 24V power adapter acceptable
• Supports 6000 VDC Ethernet ESD protection
• -40 to 75 degrees C operating temperature
