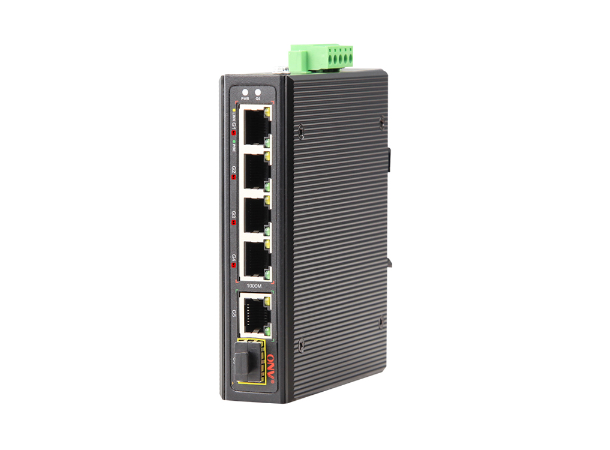

ONV-IPS33064PFG-bt is an industrial network PoE Switch with 240W PoE budget (max 95W per port) when using 48-57VDC. There are also two SFP slots available for fiber connection if needed (SFP sold separately).

Interface

Fixed Port
4×10/100/1000Base-T PoE ports (Data/Power)
1×10/100/1000Base-T uplink RJ45 port (Data)
1×1000Base-X uplink SFP fiber slot port (Data)
2 sets of V+, V- redundant DC power port (5P Phoenix terminal)

Ethernet Port
10/100/1000Base-T auto-sensing, full/half duplex
MDI/MDI-X self-adaption

Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP (=100 meter)
100BASE-TX: Cat5 or later UTP (=100 meter)
1000BASE-T: Cat5e or later UTP (=100 meter)

Fiber Port
Gigabit SFP optical fiber port, default matching optical modules
(optional: order single-mode / multi-mode, single fiber / dual fiber optical module. LC)

Optical Cable/Distance
Multi-mode: 850nm 0 ~ 550M, Single-mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.

Network Protocol
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X, IEEE802.3x

LED Indicator
Power: PWR (green), Network: Link (yellow), PoE: PoE (green)

PoE & Power Supply
PoE Port: Port 1 to 4 @bt PoE, backwards compatible with IEEE802.3af/at
Power Supply Pin: 1/2 (+), 3/6 (-) & 4/5 (+), 7/8 (-)

Max Power Per Port
95W; IEEE802.3af/at/bt

Operation TEMP/Humidity
-20~+75°C; 5%~90% RH Non condensing

Storage TEMP /Humidity
-40~+85°C; 5%~95% RH Non condensing

Dimension
119×100×30mm

Net Weight
0.35kg

Installation
Desktop, 35mm DIN rail

Certification
Certification CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS;

For more details see datasheet.
