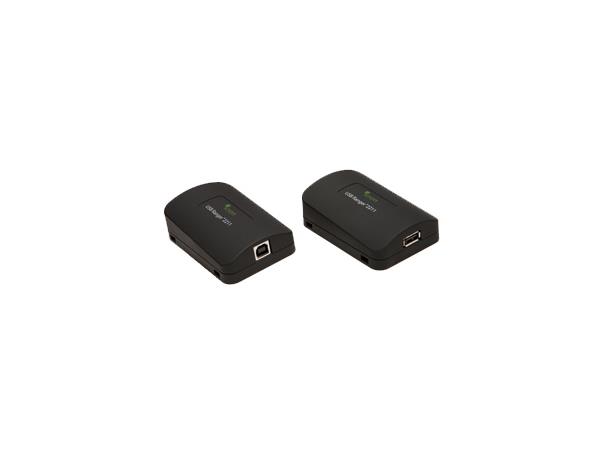

USB Ranger® 2211

Extends USB 2.0 over Cat 5 with Flexible Power



The USB Ranger® 2211 extends High-Speed USB 2.0 connections beyond the desktop up to 100

meters with the option to power either the local extender or remote extender.



!Viktig , Power kun i en ende (Sender eller mottaker)



USB Ranger® 2211 Features

The USB Ranger® 2211 uses patented technology ideal for extending USB peripherals

including: keyboards, mice, interactive white boards, flash drives, hard drives, audio

devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.
• Ability to provide power at either the local extender or remote extender.
• Power is delivered over the Cat 5 cable
• Extends USB 2.0 high-speed and USB 1.1 (low-speed, full-speed) devices
• Operates with USB 1.1 and USB 2.0 hosts
• Supports all USB devices up to 480Mbps
• True plug and play. No drivers required
• Supports all major operating systems: Windows®, Mac OS X®, and Linux®
• Uses a standard solid core Cat 5 cable for easy installation
• Number of devices can be increased using additional USB hubs



Applications
• Interactive White Board
• KVM Extension: Keyboard and Mouse
• Corporate Board Room: USB Device Extension
• Industrial Control



Ordering Information

The USB Ranger® 2211 system includes a Local Extender (LEX) module, a Remote Extender (REX) module, a USB Cable, and a Quick Start Guide. The extenders are covered by a one year warranty.





Spesifikasjoner



PERFORMANCE

Reach: 330 feet (100 meters)



Power: 24V DC @ 1A (24W)



LOCAL EXTENDER

LEX unit USB Connector: 1 x USB Type B Receptacle

LEX unit Link Connector: 1 x RJ45

Dimensions: 3.35" x 1.10" x 2.25" (85mm x 28mm x 57mm)

Mounting: 2 mounting slots on each side





REMOTE EXTENDER

REX unit USB Connector: 1 x USB Type A Receptacle

REX unit Link Connector: 1 x RJ45

Maximum current available at REX: 500mA

Dimensions: 3.35" x 1.10" x 2.25" (85mm x 28mm x 57mm)

Mounting: 2 mounting slots on each side



ENVIRONMENTAL

Operating Temperature: 32°F to 122°F (0°C to 50°C)



CERTIFICATIONS

EMC: FCC (Class A), CE (Class A)

Compliance: RoHS

Flammability: V-0
