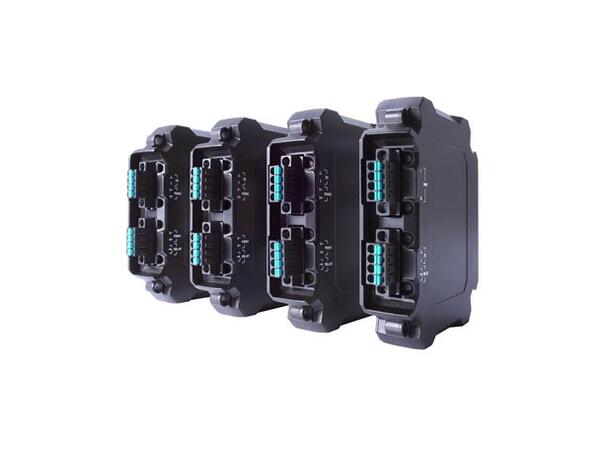

Moxa PWR-105-HV-I

The Moxa PWR-105-HV-I is a high-voltage, isolated power module designed for the EDS-4000/G4000 Series industrial Ethernet switches. Supporting both AC and DC input, it ensures flexible deployment and reliable power delivery in demanding environments. With robust protection features and industrial-grade certifications, it is ideal for mission-critical applications.

Key Features

• Input Voltage: 110/220 VDC/VAC
• Operating Voltage: 88 to 300 VDC, 85 to 264 VAC
• Input Current: 0.30 to 0.20 A (AC/DC)
• Power Inputs: Single input
• Connection: 2 removable 4-contact terminal blocks
• Overload Current Protection: Supported
• Reverse Polarity Protection: Supported
• Dimensions: 103 x 98 x 39.9 mm (4.06 x 3.86 x 1.57 in)
• Weight: 215 g (0.47 lb)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Humidity: 5 to 95% (non-condensing)
• Certifications: EN 62368-1, FCC Part 15 Class A, EN 55032/35, EN 61000-6-2/-6-4, EN 61000-4-x (Level 3/4)
• Vibration: ISTA 1A
• Warranty: 5 years
