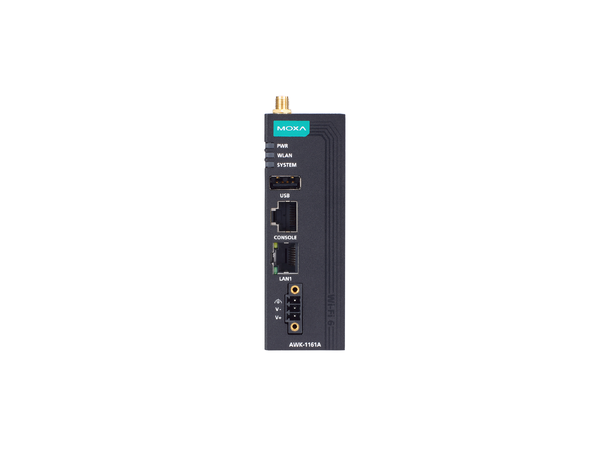

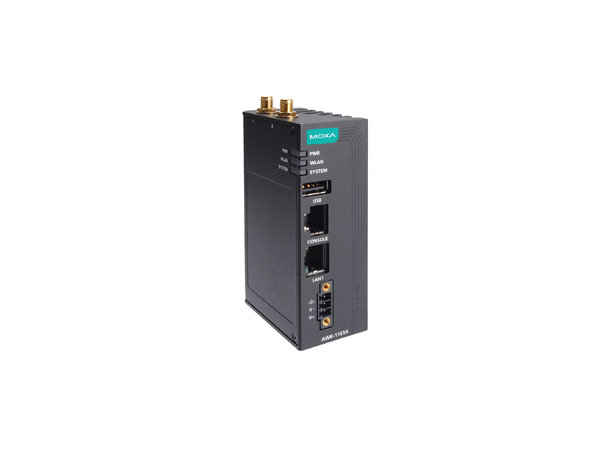

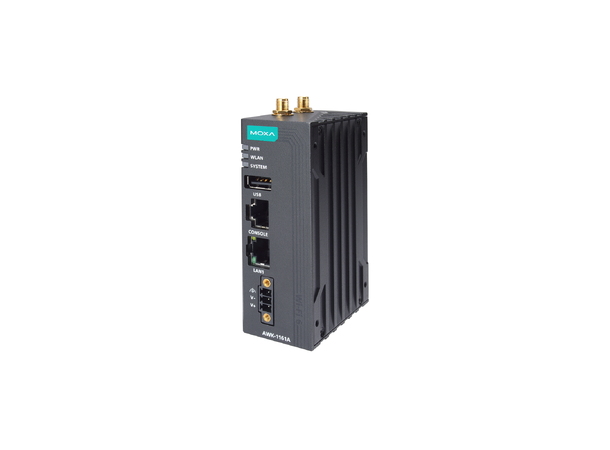

Moxa AWK-1161A-UN-T

The Moxa AWK-1161A-UN-T is a compact industrial wireless AP/bridge/client designed for reliable Wi-Fi connectivity in harsh environments. It supports IEEE 802.11a/b/g/n standards and offers flexible deployment options for mission-critical applications in automation, transportation, and remote monitoring. The “-T” variant is built for extended temperature ranges, making it ideal for outdoor and extreme industrial settings.

Key Features

• Wireless Standards: IEEE 802.11a/b/g/n with single-radio operation on 2.4 GHz or 5 GHz bands
• Security: WPA2/WPA encryption, MAC/IP filtering
• Ethernet: 1 x 10/100 Mbps (RJ45)
• Mounting: DIN-rail or wall-mountable
• Power Input: 9 to 30 VDC
• Power Consumption: 14 W
• Operating Temperature: -40 to 75°C (-40 to 167°F)
• IP Rating: IP30
• Supported Modes: AP, bridge, and client
• Supported OS: Web-based configuration interface; compatible with Moxa MXview and AeroMag
