Moxa 86M-2821D-T

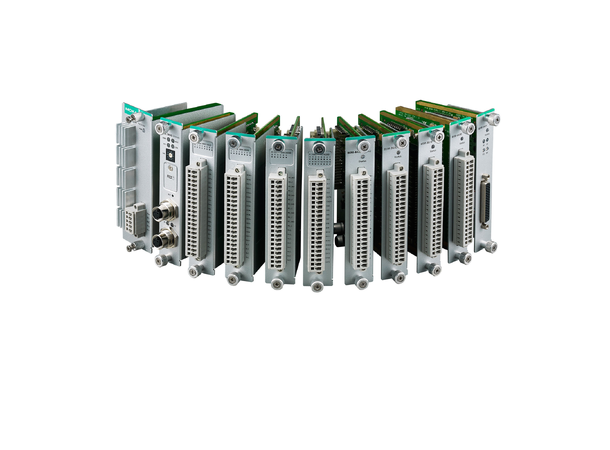

The Moxa 86M-2821D-T is a rugged digital output module designed for the ioPAC 8600 Series, optimized for use in railway, wind power, and offshore applications. With 8 digital output channels, wide voltage support, and robust protection features, it ensures reliable control in harsh industrial environments. The module supports both DO and PWM modes and operates across a wide temperature range, making it ideal for mission-critical automation systems.

Key Features

• Digital Outputs: 8 channels, source type
• Output Voltage: 24 to 110 VDC
• Current Rating: 1500 mA per channel
• I/O Modes: DO or PWM
• Pulse Output Frequency: Up to 100 Hz
• Over-Voltage Protection: 160 VDC
• Short-Circuit Protection: 2800 mA @ 25°C
• Isolation: 3 kVDC or 2 kVrms
• Connector Type: Spring-type Euroblock terminal
• Power Consumption: 85.2 mA @ 24 VDC
• Operating Temperature: -40 to 75°C
• Storage Temperature: -40 to 85°C
• Humidity: 5 to 95% RH (non-condensing)
• Dimensions: 25 x 128.2 x 85.5 mm
• Weight: Under 80 g
• Certifications: EN 50155, EN 50121-4, UL 508, CE, FCC
• MTBF: 696,245 hours (Telcordia SR332)
• Warranty: 5 years
