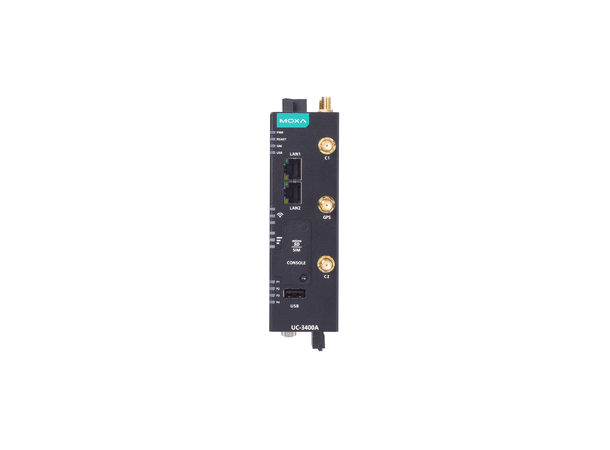

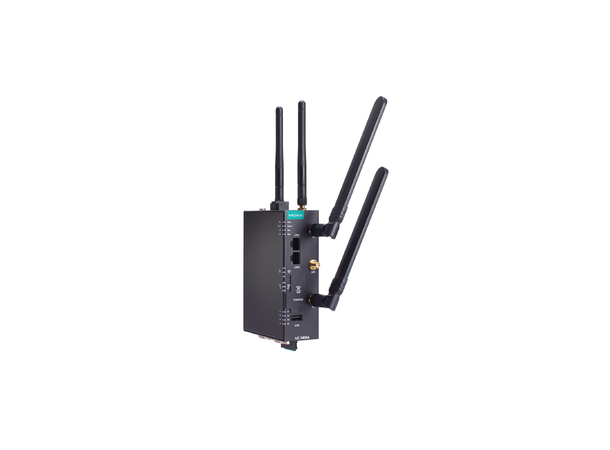

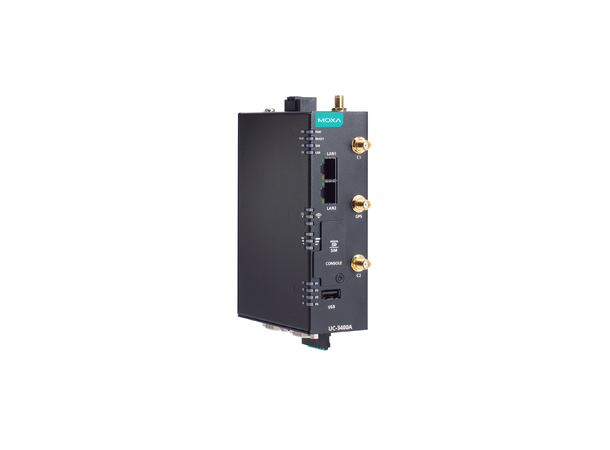

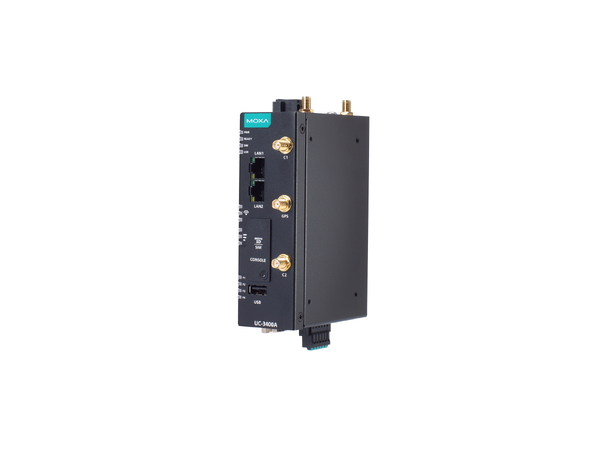

Moxa UC-3424A-T-LTE
The Moxa UC-3424A-T-LTE is a rugged, fanless Arm® Cortex®-A53 quad-core industrial computer designed for reliable edge computing in harsh environments. Equipped with built-in LTE Cat. 4 connectivity, dual SIM support, and Moxa Industrial Linux, it is ideal for remote monitoring, data acquisition, and IIoT gateway applications. The “-T” variant supports extended temperature ranges, making it suitable for outdoor and industrial deployments.
Key Features
- Processor: Arm Cortex-A53 quad-core 64-bit, 1.4 GHz
- Memory: 4 GB DDR4 RAM, 16 GB eMMC storage
- Operating System: Moxa Industrial Linux 3 (Debian 11, kernel 5.10)
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial Ports: 2 x RS-232/422/485 (DB9, software-selectable)
- CAN Ports: 2 x CAN 2.0 A/B with 2 kV isolation
- USB: 1 x USB 2.0 (Type-A)
- Cellular: LTE Cat. 4 module with dual nano SIM slots
- GPS: Integrated GPS/GLONASS/BeiDou/Galileo/QZSS
- Security: TPM v2.0 module
- Power Input: 9 to 48 VDC
- Operating Temperature: -40 to 70°C
- Certifications: CE, FCC, UL, Class I Div 2, ATEX Zone 2
- Mounting: DIN-rail or wall-mountable
