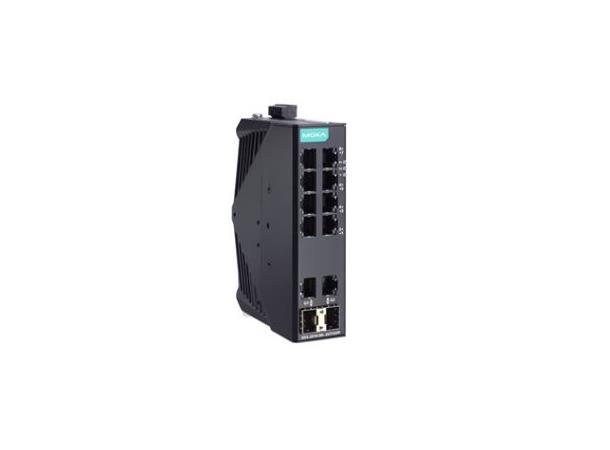

Moxa EDS-2010-ML-2GTXSFP

EDS Unmanaged EDS-2000-ML 10-port

Product nr: 128503

Moxa EDS-2010-ML-2GTXSFP Unmanaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP ports, and -10 to 60°C operating temperature

Features and Benefits

 2 Gigabit uplinks with flexible interface design for high-bandwidth data aggregation
 QoS supported to process critical data in heavy traffic
 Relay output warning for power failure and port break alarm
 IP30-rated metal housing
 Redundant dual 12/24/48 VDC power inputs
 -10 to 60°C operating temperature


The EDS-2010-ML series of industrial Ethernet switches have eight 10/100M copper ports and two 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, which are ideal for applications that require high-bandwidth data convergence. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2010-ML Series also allows users to enable or disable the Quality of Service (QoS) function, broadcast storm protection, and the port break alarm function with DIP switches on the outer panel.

The EDS-2010-ML Series has 12/24/48 VDC redundant power inputs, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2010-ML Series has passed a 100% burn-in test to ensure it will function reliably in the field.

The EDS-2010-ML Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
