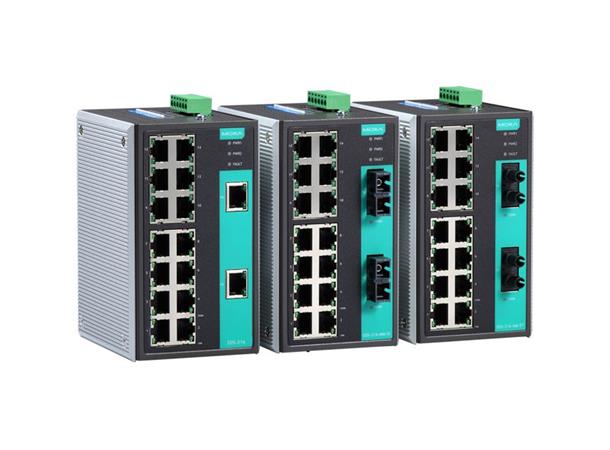

Technology:
Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X), 100BaseFX,
IEEE 802.3x for Flow Control
Processing Type Store and Forward
Flow Control IEEE802.3x full duplex, back pressure flow control



•  Interface:
RJ45 Ports 10/100BaseT(X) auto negotiation speed,F/H duplex mode, and auto MDI/MDI-X connection
Fiber Port(s) 100BaseFX ports (SC/ST connector)
LED Indicators PWR1, PWR2, Fault, 10/100M (TP port), and 100M (Fiber port)
DIP Switches Port break alarm mask
Alarm Contact One relay output with current carrying capacity of 1A @ 24 VDC



Optical Fiber




•  Physical Characteristics:
Enclosure IP30 protection, metal case
Weight  1140 g
Dimensions 80.5 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)
Installation DIN-Rail or Wall Mounting (optional kit)



•  Environmental Limits:
Operating Temperature 0 to 60°C (32 to 140°F)
-40 to 75°C (-40 to 167°F) for T models
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)



•  Power Requirements:
Input Voltage 24 VDC (12 to 45VDC), redundant inputs
Input Current (@ 24 V):
0.27A (EDS-316),
0.44A (EDS-316A, EDS-316A-M, EDS-316A-S, EDS-316A-MM, EDS-316-SS, EDS-316-MS)
Overload Current Protection 1.6A ( EDS-316,EDS-316-M, EDS-316-MM, EDS-316-MS, EDS-316-S, EDS-316-SS)
Connection Removable 6-pin terminal block
Reverse Polarity Protection Present



•  Agency Approvals:
EMI FCC Part 15, CISPR (EN55022) class A
EMS EN61000-4-2 (ESD), level 3
EN61000-4-3 (RS), level 3
EN61000-4-4 (EFT), level 3
EN61000-4-5 (Surge), level 3
EN61000-4-6 (CS), level 3
Safety UL508, UL60950-1, EN60950-1
Hazardous Location UL/cUL Class I, Division 2, Groups A, B, C and D (Pending); ATEX Class I, Zone 2, Ex nC IIC (Pending)
Shock IEC60068-2-27
Freefall IEC60068-2-32
Vibration IEC60068-2-6
MTBF (meantime between failures) 257,000 hrs
Database: MIL-HDBK-217F, GB 25°C
Maritime DNV, GL



•  Warranty:
Warranty Period 5 years
Details See www.moxa.com/warranty
