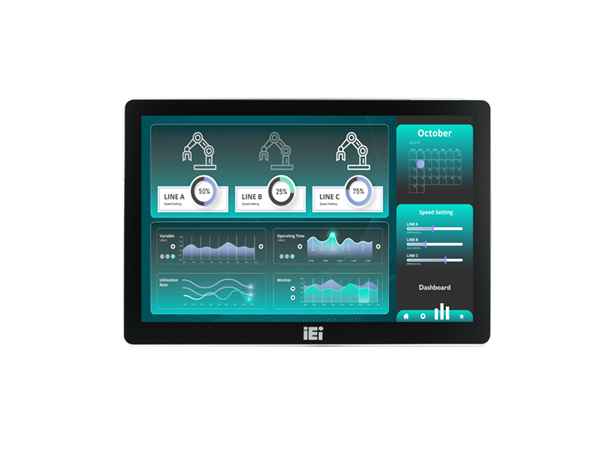

AFL4-W101-ADLP-i5/8G-R10 10.1" Panel PC
AFL4-W101-ADLP-i5/8G-R10 10.1" Panel PC
i5-1240P/8GB ram/PCAP Touch
Product nr:
137184
Add to wish list
AFL4-W101-ADLP_20230608_EN.pdf
Description
Support
LCD Display
10,1” (16:10)
Resolution
1280 (W) x 800 (H)
Brightness
350 cd/m²
Contrast Ratio
900:1
LCD Color
16.2M
Viewing Angle (H-V)
170°/170°
Backlight MTBF
30000 hours
SOC
Intel Core i5-1240P (on-board)
Display Output
1 x HDMI
Memory
Dual-channel 8GB LPDDR4x on-board
Touchscreen
Multi-point projected capacitive type
anti-UV / anti-glare coating,support gloves
Touch Controller
EETI 80
Storage
1 x M.2 M key 2242 (PCIe Gen4 x4)
1 x M.2 M key 2280 (PCIe Gen4 x4)
Ethernet
LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225-LM 2.5GbE controller (support Intel® AMT)
Mounting
VESA 100, Wall, Stand and Arm
Construction Material
Aluminum front cover and sheet metal rear cover
Enclosure Color
Silver+Black
I/O Ports
2 x RS-232 by DB9
2 x RS-232/422/485 by DB9
2 x 2.5GbE LAN
2 x USB 3.2 Gen2
2 x USB 3.2 Gen1
1 x USB 2.0
1 x HDMI output
1 x 12V DC Jack
1 x Power button
1 x Reset button
1 x AT/ATX switch
Power Supply
12V DC
Thermal Solution
Fanless
Operating Temperature
(with air flow)
-10ºC ~ 50ºC
Storage Temperature
-20ºC ~ 60ºC
Humidity
10% ~ 95%@40ºC, non-condensing
IP Level
IP 64 compliant front panel
Operation Vibration
MIL-STD-810G 514.6C-1 (with SSD)
Operation Shock
Half-sine wave shock 5G; 11ms; 100 shocks per axis
Safety and EMC
CE, FCC Class A, UKCA
ErP
ErP 2009/125/EC
Net weight
1,66kg
Dimensions(H x W x D) (mm)
243.56 x 166.2 x 50.95
Producer
Support
AFL4-W101-ADLP_20230608_EN.pdf
Alternatives
AFL4-W101-ADLP-i3/8G-R10 10.1" Panel PC
i3-1220P/8GB ram/PCAP Touch
AFL4-W101-ADLP-i7/8G-R10 10.1" Panel PC
i7-1260P/8GB ram/PCAP Touch
