Panel PC

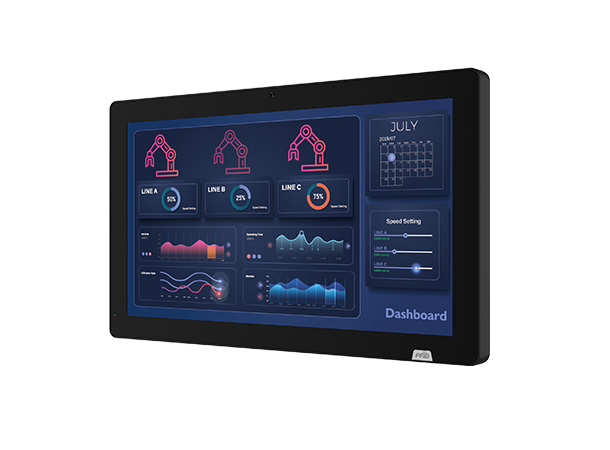

AFL3-W15C-ADLP-i3/8G-R10 15,6" Panel PC

i3-1220P/8GB ram/PCAP touch

Product nr: 137174
AFL3-W15C-ADLP-i3/8G-R10 15,6" Panel PC i3-1220P/8GB ram/PCAP touch
LCD Display15,6” (16:9)
Resolution1920 (W) x 1080 (H)
Brightness450 cd/m²
Contrast Ratio800:1
LCD Color16.7M
Viewing Angle (H-V)170°/170°
Backlight MTBF50000 hours
SOCIntel Core i3-1220P (on-board)
Display Output1 x HDMI
MemoryTwo 260-pin 3200 MHz dual-Channel
DDR4 SO-DIMM (1x8GB standard max. 64GB)
TouchscreenMulti-point projected capacitive type
Touch ControllerProjected capacitive type: EXC3160
Storage1 x 2.5" 6Gb/s SATA HDD bay
EthernetLAN1: Intel® I225 LM (support Intel AMT)
+ LAN2: Intel® I225V
Expansion2 x M.2 2280 M-key (PCIe x4)
1 x M.2 3080 B-key (PCIe x1 or SATA)
support IPMI function
MountingPanel, Wall, Stand and Arm VESA 75 /100mm
Construction MaterialPC + ABS Plastic
Enclosure ColorBlack C
I/O Ports1 x RS-232 by DB9
1 x RS-232/422/485 w/ AFC by DB9
2 x 2.5GbE LAN
1 x RJ45 for IPMI
4 x USB 3.2 Gen1
1 x HDMI output
1 x 12V DC jack
1 x Power button
1 x Reset button
1 x Clear CMOS button
1 x AT/ATX switch
Power Supply12V DC
Thermal SolutionFanless
Operating Temperature
(with air flow)0ºC ~ 50ºC
Storage Temperature-20ºC ~ 60ºC
Humidity10% ~ 95%@40ºC, non-condensing
IP LevelIP 64 compliant front panel
Safety and EMCCE, FCC Class A, UKCA
ErPErP 2009/125/EC
Dimensions(H x W x D) (mm)395,89 x 250,21 x 69,40
