DM-F65A/R-R20 6,5" Touch monitorIEI/VGA,DVI/Res.Touch(USB)/AC

Spec Item		Description
Display	LCD Size	6.5”(4:3)
	Brightness(cd/m2)	800
	Max Resolution	640 (W) x 480 (H)
	Contrast Ratio	600:1
	Backlight MTBF(hrs)	50000
I/O Interface	I/O Ports and Switches	1 x VGA (DB-15) 1 x DVI 1 x USB 2.0 (touch) 1 x RS-232 (reserved for resistive touch ATO) 1 x Lockable 12V DC jack
Power	Power adapter	12V DC
Environment	Operating Temperature	-20°C ~ 60°C (with air flow)
	Humidity	10% to 95% (non-condensing)
	Storage Temperature	-20°C ~ 70°C
	IP Level	IP 65 compliant front panel
Physical Characteristics	Dimensions (LxWxH) (mm)	191.8 x 154.36 x 42.88
Physical Characteristics	Cutout Dimensions	180 x 140
Weight	Weight	1.1/2.6 Kg
LCD	LCD Color	16.2M
	Pixel Pitch (mm)	0.207 x 0.207
	Viewing Angle (H-V)	160° / 140°
Touch	Touch Screen	5-wire resistive single touch window
Touch	Touch Controller	Penmount 6000

DM-F65A/R-R20 6,5" Touch monitor IEI/VGA,DVI/Res.Touch(USB)/AC

Accessories

Alternatives

Articles

Number of articles found:

MONITORS

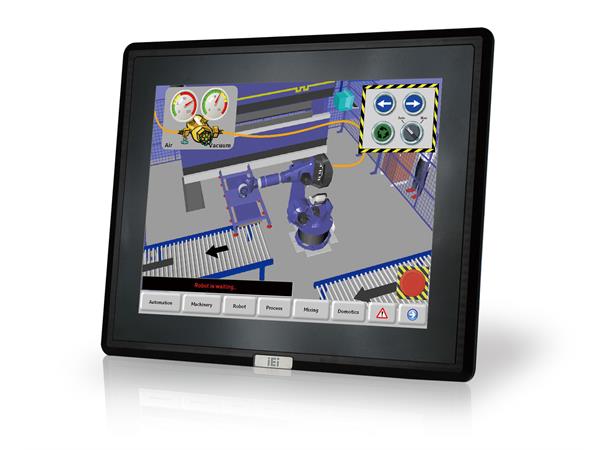

DM-F65A/R-R20 6,5" Touch monitor

IEI/VGA,DVI/Res.Touch(USB)/AC

Product nr: 133607

Description
Support

Spec Item		Description
Display	LCD Size	6.5”(4:3)
	Brightness(cd/m2)	800
	Max Resolution	640 (W) x 480 (H)
	Contrast Ratio	600:1
	Backlight MTBF(hrs)	50000
I/O Interface	I/O Ports and Switches	1 x VGA (DB-15) 1 x DVI 1 x USB 2.0 (touch) 1 x RS-232 (reserved for resistive touch ATO) 1 x Lockable 12V DC jack
Power	Power adapter	12V DC
Environment	Operating Temperature	-20°C ~ 60°C (with air flow)
	Humidity	10% to 95% (non-condensing)
	Storage Temperature	-20°C ~ 70°C
	IP Level	IP 65 compliant front panel
Physical Characteristics	Dimensions (LxWxH) (mm)	191.8 x 154.36 x 42.88
Physical Characteristics	Cutout Dimensions	180 x 140
Weight	Weight	1.1/2.6 Kg
LCD	LCD Color	16.2M
	Pixel Pitch (mm)	0.207 x 0.207
	Viewing Angle (H-V)	160° / 140°
Touch	Touch Screen	5-wire resistive single touch window
Touch	Touch Controller	Penmount 6000

Producer Product Support Datablad
