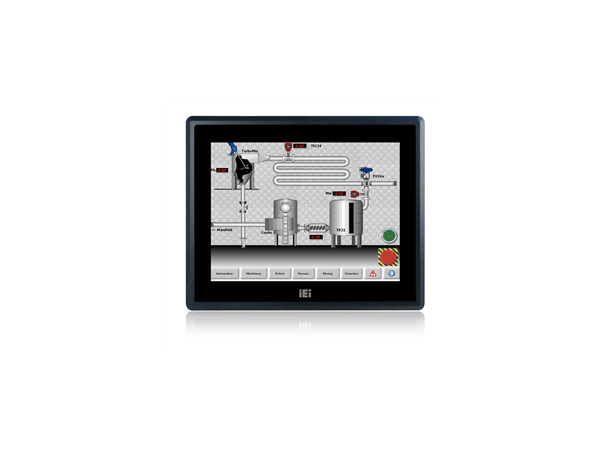

PPC-F12B-BTi-J1/2G/PC-R13 12" Panel PCIEI/Cel. J1900/2GB/PCTouch

Specifications

Hardware Spec.

Spec Item	Description
Display
Backlight MTBF(hrs)	50000
Brightness(cd/m2)	600
Contrast Ratio	700:1
LCD Size	12.1""(4:3)
Max Resolution	1024 (W) x 768 (H)
Environment
Humidity	10% to 95% (non-condensing)
IP Level	IP 65 compliant front panel
Operating Temperature	-10°C~50°C (14°F~122°F)
Storage Temperature	-20°C~60°C (-4°F~140°F)
I/O Interface
I/O Ports and Switches	2 x RJ-45 LAN Port 2 x USB 3.0 2 x USB 2.0 1 x HDMI output 2 x RS-232 1 x RS-232/RS-422/485 1 x VGA 1 x 9 V~36 V DC jack (4-pin) 1 x 9 V~36 V DC terminal block 1 x Line-out (PPC-F15B and PPC-17B only) 1 x Power switch
LCD
LCD Color	16.2M
Pixel Pitch (mm)	0.24 x 0.24
Viewing Angle (H-V)	160° / 140°
Physical Characteristics
Cutout Dimensions	244.8 x 304.8
Dimensions (LxWxH) (mm)	262.2 x 322.2 x 47.2
Power
Power adapter	9V~36V DC
Touch
Touch Controller	5-wire resistive single-touch type flat touchscreen 3H
Touch Screen	2-point projected capacitive type touchscreen 6H
Weight
Weight	3.2 kg

Ordering Info.

Item No.	Description
PPC-F12B-BTi-J1/2G/PC-R12	12.1" 600 cd/m2 XGA Panel PC with IntelR CeleronR Processor J1900, TDP 10W, 2GB RAM*1, support iRIS-2400, black color, 9-36V DC input, projected capacitive touch window with AG coating, R12
PPC-F12B-BTi-J1/2G/R-R12	12.1" 600 cd/m2 XGA Panel PC with IntelR CeleronR Processor J1900, TDP 10W, 2GB RAM*1, support iRIS-2400, black color, 9-36V DC input, resistive touch window with AG coating, R12

Package Contents
- 1 x PPC-FxxB-BTi Panel PC
- 1 x User Manual
- 1 x Touch Pen
- 1 x Power Cord
- 1 x Screw Pack
- 1 x Power Adapter

PPC-F12B-BTi-J1/2G/PC-R13 12" Panel PC IEI/Cel. J1900/2GB/PCTouch

Accessories

Alternatives

Articles

Number of articles found:

Panel PC

PPC-F12B-BTi-J1/2G/PC-R13 12" Panel PC

IEI/Cel. J1900/2GB/PCTouch

Product nr: 132034

Datasheet Product

Description
Support

Specifications

Hardware Spec.

Spec Item	Description
Display
Backlight MTBF(hrs)	50000
Brightness(cd/m2)	600
Contrast Ratio	700:1
LCD Size	12.1""(4:3)
Max Resolution	1024 (W) x 768 (H)
Environment
Humidity	10% to 95% (non-condensing)
IP Level	IP 65 compliant front panel
Operating Temperature	-10°C~50°C (14°F~122°F)
Storage Temperature	-20°C~60°C (-4°F~140°F)
I/O Interface
I/O Ports and Switches	2 x RJ-45 LAN Port 2 x USB 3.0 2 x USB 2.0 1 x HDMI output 2 x RS-232 1 x RS-232/RS-422/485 1 x VGA 1 x 9 V~36 V DC jack (4-pin) 1 x 9 V~36 V DC terminal block 1 x Line-out (PPC-F15B and PPC-17B only) 1 x Power switch
LCD
LCD Color	16.2M
Pixel Pitch (mm)	0.24 x 0.24
Viewing Angle (H-V)	160° / 140°
Physical Characteristics
Cutout Dimensions	244.8 x 304.8
Dimensions (LxWxH) (mm)	262.2 x 322.2 x 47.2
Power
Power adapter	9V~36V DC
Touch
Touch Controller	5-wire resistive single-touch type flat touchscreen 3H
Touch Screen	2-point projected capacitive type touchscreen 6H
Weight
Weight	3.2 kg

Ordering Info.

Item No.	Description
PPC-F12B-BTi-J1/2G/PC-R12	12.1" 600 cd/m2 XGA Panel PC with IntelR CeleronR Processor J1900, TDP 10W, 2GB RAM*1, support iRIS-2400, black color, 9-36V DC input, projected capacitive touch window with AG coating, R12
PPC-F12B-BTi-J1/2G/R-R12	12.1" 600 cd/m2 XGA Panel PC with IntelR CeleronR Processor J1900, TDP 10W, 2GB RAM*1, support iRIS-2400, black color, 9-36V DC input, resistive touch window with AG coating, R12

Package Contents
- 1 x PPC-FxxB-BTi Panel PC
- 1 x User Manual
- 1 x Touch Pen
- 1 x Power Cord
- 1 x Screw Pack
- 1 x Power Adapter
