Panel PC

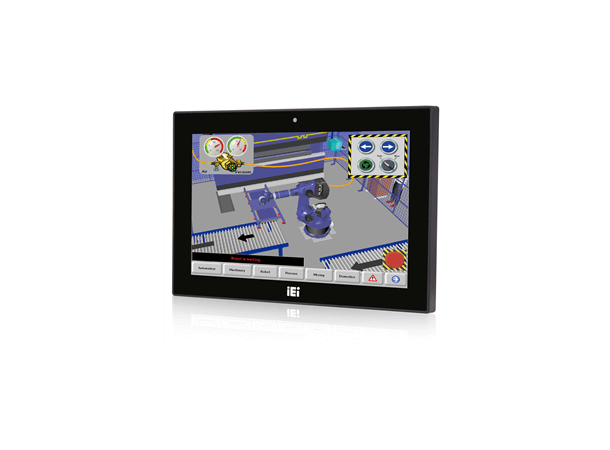

AFL3-W15C-ULT3-i5/PC/4G-R13 15,6"PanelPC


Product nr: 128611
Spec ItemDescription
BluetoothBluetooth v4.0
WirelessIEEE 802.11a/b/g/n/ac
Humidity10% to 95% (non-condensing)
IP LevelIP 64 compliant front panel
Operating Temperature-20°C~50°C
Safety & EMCCE / FCC
Storage Temperature-20°C~60°C
I/O Interface
AudioAMP 3W + 3W (internal speakers)
Audio CodecALC892
Ethernet2 x Intel® I211 PCIe GbE controller
I/O Ports and Switches1 x RS-232 by DB-9 (RI/5V/12V)
1 x RS-232/422/485 by DB-9 (RI/5V/12V)
2 x GbE LAN
4 x USB 3.0
1 x HDMI output
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x 9-30V lockable power jack
RAMTwo 260-pin 2133/1867 MHz dual-channel
DDR4 SO-DIMMs (system max. 32 GB)
Backlight MTBF50000 (LED backlight)
Brightness (cd/m2)400
Contrast Ratio500:1
LCD Color16.2M
Pixel Pitch (mm)0.240 (H) x 0.240 (V)
Resolution1366 x 768 (16:9)
Viewing Angle (H-V)170º / 160º
Other Features
Camera2-megapixel with low light function
Microphonedigital microphone
OSD FunctionSoftware OSD
System CoolingFanless
Physical Characteristics
ColorBlack C
Construction Front PanelPC + ABS Plastic
Dimensions (LxWxH) (mm)396 x 250 x 64
MountingPanel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm
Net Weight4.5Kg
Power consumption12V@6A (Intel® Core™ i5-6300U CPU with 4GB DDR4 2133 MHz DDR4 memory)
Cooling method / System FanFanless
CPU6th Generation Intel® Core™ i5 and Celeron® on-board processor
Storage1 x 2.5” SATA 3Gb/s HDD bay
1 x M.2 M key PCIe storage (2280 or 22110)
1 x mSATA slot
Touch ControllerPenMount DMC9000/ EETI EXC7200
Touch Screen5-wire resistive type with RS-232 interface / projected capacitive type with USB interface
I/O Interface
I/O Interface1 x RS-232(DB-9 (RI/5V/12V))
1 x RS-422/485(DB-9 (RI/5V/12V))
4 x USB 3.0
1 x HDMI(output)
2 x LAN(Gbe)
1 x Reset Button
1 x Power In(9-30V lockable power jack)
1 x AT/ATX switch
1 x Power Switch
