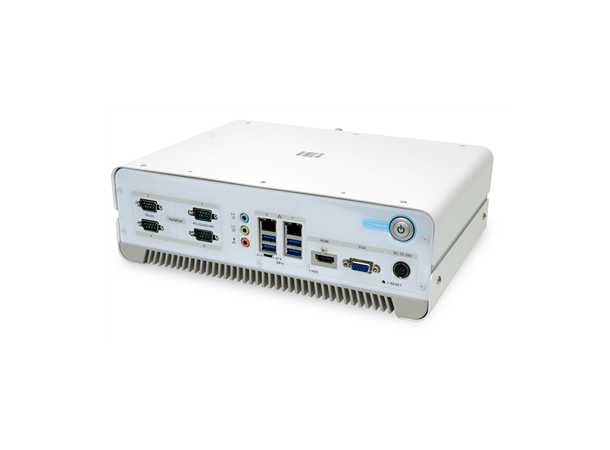

HTB-100-HM170-i5/4G-R10

IEI/i5-6442EQ/4GB ram/PCIe x16/12-28VDC

Product nr: 124264
HTB-100-HM170-i5/4G-R10 IEI/i5-6442EQ/4GB ram/PCIe x16/12-28VDC
Datablad
  • Spec ItemDescription
    Color
    ColorSilver + Greyish blue
    Dimensions
    Dimensions294 x 209 x 90.2
    Environment
    Humidity10%~90% non-condensing
    Operating Temperature-20°C ~ 70°C with air flow (SSD)
    Expansion Slots
    Expansion Slots1 x PCIe x 16
    1 x Half-size PCIe mini
    1 x Full-size PCIe mini (support mSATA, colay with SATA)
    1 x M.2 (A & E key)
    Form factor
    SBC Form Factor*CPU:
    Intel® Core™ i7-6822EQ 2GHz
    *Chipset:
    Intel® HM170
    *Memory:
    2 x 260-pin DDR4 SO-DIMM preinstalled one 4 GB
    (Maximum memory size supported by the system is 32 GB)
    *Safety & EMC:
    CE/FCC class B part18,
    IEC60601-1 v3.1, IEC60601-1-2 V4.0, IEC62304,
    ISO 14971
    *Power:
    DC Jack : 12V~28V DC(Input)
    19V@4.4A(Consumption)
    I/O Interface
    I/O OpeningsReserved IO window for PCIe Mini card expasion
    I/O Ports*Display:
    1 x VGA,
    1 x HDMI2.0,
    1 x iDP(optional)
    *Audio:
    1 x Line-out,
    1 x Line-in,
    1 x Mic-in
    *Network:
    2 x RJ-45 PCIe GbE by Intel® I211 controller
    1 x 802.11a/b/g/n/ac 2T/2R (optional)
    *Others:
    2 x RS-232 (DB-9, with 4kV isolation)
    2 x RS-232/422/485 (DB-9, with 4kV isolation)
    4 x USB 3.0
    2 x USB 2.0
    Physical Characteristics
    ConstructionExtruded aluminum alloys
    System
    Cooling method / System FanFanless
    Drive BaysHDD: 1 x 2.5""SATA 6Gb/s HDD/SSD Bay

  • Ordering Info.

    Item No.Description
    HTB-100-HM170-i5/4G-R10Ruggedized fanless embedded system with Intel® Core™ i5-6442EQ 1.9 GHz (up to 2.7 GHz, quad core, TDP 25W), 4GB DDR4 pre-installedmemory, one PCIe x16 expansion, VGA/HDMI/iDP, COM port, 12~28V DC, RoHS
    HTB-100-HM170-i7/4G-R10Ruggedized fanless embedded system with Intel® Core™ i7-6822EQ 2.0 GHz (up to 2.8 GHz, quad core, TDP 25W), 4GB DDR4 pre-installedmemory, one PCIe x16 expansion, VGA/HDMI/iDP, COM port, 12~28V DC, RoHS

  • Package Contents

    • 1 x Utility CD

    • 1 x Chassis Screw Set

    • 1 x One key recovery CD

    • 1 x Mounting Bracket
