| CPU | LGA1155 socket supports Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor |
| PCH | Intel® H61 |
| BIOS | UEFI |
| System Memory | Two 240-pin 1333/1066MHz dual-channel DDR3 & DDR3L (1.35V) DIMMs supported (system max. 16GB) |
| Ethernet | LAN1: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support
LAN2: Realtek RTL8111E PCIe GbE controller |
| I/O Interface | 2 x RS-232
1 x RS-422/485
1 x LPT
1 x FDD
1 x PS/2 KB/MS
1 x 6-pin wafer for KB & MS
7 x USB 2.0 (1 on rear, 6 by pin header)
4 x SATA 3Gb/s (H61 doesn't support AHCI & RAID) |
| Digital I/O | 8-bit digital I/O (4-bit input, 4-bit output) |
| Super I/O | Fintek F81866 |
| TPM | 1 x TPM connector (2x10 pin) |
| SMBus | 1 x 4-pin wafer |
| Audio | Supports 7.1 channel HD audio by IEI AC-KIT-892HD-R10 kit |
| Display Interfaces | 1 x VGA (up to 2048 x 1536 @75Hz)
1 x DVI-D (up to 1920 x 1200 @60Hz) (via header to IO-KIT-001-R20 DVI-D/USB module) (optional) |
| Expansion | PCI signal and ISA signal via golden finger |
| Watchdog Timer | Software programmable supports 1~255 sec. system reset |
| Power Supply | 5V/12V, AT/ATX support |
| Power Consumption | 5V@4.53A, 12V@0.19A, Vcore_12V@7.81A, 5VSB@0.18A
(3.4GHz Intel® Core™ i7-2600K with two 2GB 1333MHz DDR3 memory) |
| Graphic | Intel® HD Graphics Gen 6 supports DX10.1 and OpenGL 3.0
Full MPEG2, VC1, AVC Decode |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Dimensions | 338 mm x 122 mm |
| Weight | GW: 1000g/NW: 260g |
| Embedded Controller | ITE IT8519E |
| Front Panel | 1 x Front panel (power LED, HDD LED, speaker, power button, reset button) |
| I2C | 1 x 4-pin wafer |
| PCIe-PCI Bridge | ITE IT8892E |
| PCI-ISA Bridge | ITE IT8888G |
| Fan Connector | 1 x 4-pin smart fan connector
1 x 4-pin system fan connector |
|
|
Ordering Information
|
| |
| Part No. | Description |

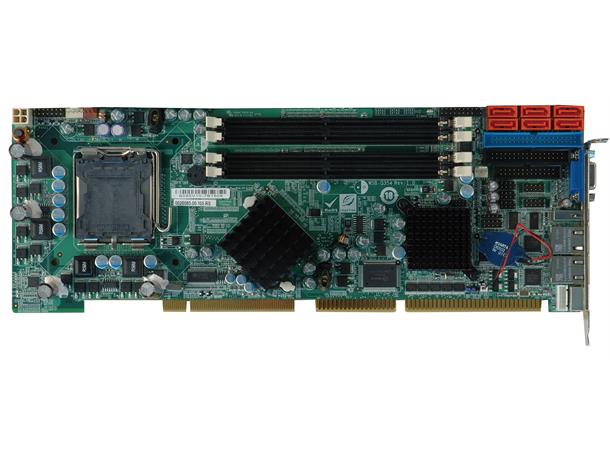

| WSB-H610-R10 | Full-size
PICMG 1.0 CPU card supports 32nm LGA1155 Intel® Core™
i7/i5/i3/Pentium®/Celeron® CPU with Intel® H61, DDR3, VGA, dual Realtek
PCIe GbE, USB 2.0, SATA 3Gb/s, COM, HD Audio and RoHS |
| WSB-H610-DVI-R10 | Full-size
PICMG 1.0 CPU card supports 32nm LGA1155 Intel® Core™
i7/i5/i3/Pentium®/Celeron® CPU with Intel® H61, DDR3, VGA/DVI-D, dual
Realtek PCIe GbE, USB 2.0, SATA 3Gb/s, COM, HD Audio and RoHS |
| 32006-000300-100-RS | Male PS/2 KB/MS Y-cable w/o bracket, 12cm(KB)+14cm(MS) |
| 19800-000075-RS | 6-pin header PS/2 KB/MS Y-cable with bracket, 220mm |
| SAIDE-KIT01-R10 | SATA to IDE/CF converter board |
| 32102-000100-200-RS | SATA power cable |
| 19800-000049-RS | LPT cable |
| 32200-000017-RS | FDD cable |
| AC-KIT-892HD-R10 | 7.1 channel HD audio kit with Realtek ALC892 supports dual audio streams |
| CPU-DT-i5-2500T | Intel® Core™ i5-2500T processor, LGA1155, quad core 2.3GHz, 6M cache, 45W, compatible with CF-1156C-RS CPU cooler |
| CPU-DT-i5-2390T | Intel® Core™ i5-2390T processor, LGA1155, dual core 2.7GHz, 3M cache, 35W, AMT, compatible with CF-1156C-RS CPU cooler |
| CPU-DT-i3-2100T | Intel® Core™ i3-2120T processor, LGA1155, dual core 2.6GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler |
| CPU-DT-P-G620T | Intel® Pentium® G630T processor, LGA1155, dual core 2.3GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler |
| CPU-DT-C-G440 | Intel® Celeron® G440 processor, LGA1155, single core 1.6GHz, 1M cache, 35W, compatible with CF-1156C-RS CPU cooler |
| CF-1156A-RS-R11 | High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W |
| CF-1156C-RS | LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W |
| CF-1156D-RS | LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W |
| CF-1156E-R11 | High performance LGA1155/LGA1156 cooler kit, 95W |
| TPM-IN01-R11 | 20-pin Infineon TPM module, software management tool, firmware V3.17 |
|
|
