SPCIE-C236-R10IEI/PICMG 1.3/Socket 1151

Spec Item		Description
System	CPU	LGA 1151 Intel® Xeon® E3, Core™ i3/Pentium®/Celeron® processor supported
	Chipset	Intel® C236
	Memory Max.	Four 288-pin 1867/2133MHz Dual-Channel DDR4 ECC & non-ECC unbuffered DIMM supported up to 64GB
I/O Interface	Ethernet	LAN1: Intel® I219LM Clarkville-V with Intel® AMT 11.0 supported LAN2: Intel® I210 PCIe controller
	Digital I/O	8-bit digital I/O
	Expansion	16-lane PCIe link from CPU via golden finger: Supports one PCIe x16, or two PCIe x8, or one PCIe x8 + two PCIe x4 on the backplane (configured via BIOS) 4-lane PCIe link from PCH via golden finger: Supports four PCIe x1 slots or one PCIe x4 slot on the backplane (configured via BIOS switch) One PCIe Mini
Power	Power consumption	5V@3.22A, 12V@6.81A, 3.3V@1.21A, 5VSB@0.18A (Intel® Xeon® E3-1275 v5 3.60 GHz CPU with 64GB (16GBx4) 2133 MHz DDR4 memory)
Environment	Operating Temperature	-20°C ~ 60°C
Environment	Humidity	5% ~ 95%, non-condensing
Option	iRIS	1 x iRIS-2400 slot (optional)
Dimensions	Dimensions	338 mm x 126 mm
Weight	Weight	1000g / NW: 420g
I/O Interface	I/O Interface	6 x SATA 6Gb/s
		2 x Internal RS-232
		2 x Internal RS-232/422/485
		1 x KB/MS((1 x 6Pin Wafer))
		7 x Internal USB 2.0((1 type A 180°, 6 by pin header))
		1 x LPT
		2 x Internal USB 3.0((19 Pin BOX HEADER))

SPCIE-C236-R10 IEI/PICMG 1.3/Socket 1151

Accessories

Alternatives

Articles

Number of articles found:

COMPUTER COMPONENTS

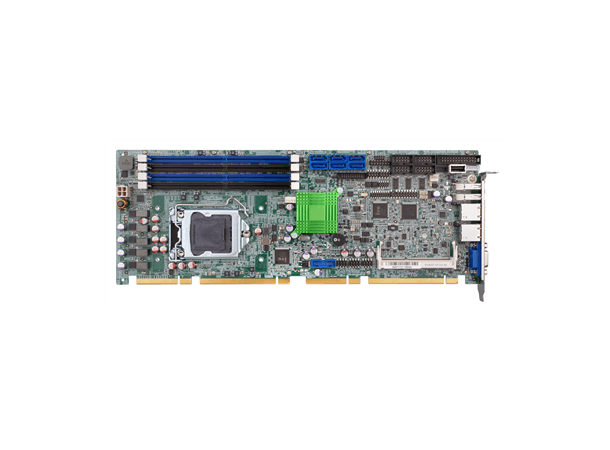

SPCIE-C236-R10

IEI/PICMG 1.3/Socket 1151

Product nr: 121931

SPCIE-C236-R10 IEI/PICMG 1.3/Socket 1151

Description

Spec Item		Description
System	CPU	LGA 1151 Intel® Xeon® E3, Core™ i3/Pentium®/Celeron® processor supported
	Chipset	Intel® C236
	Memory Max.	Four 288-pin 1867/2133MHz Dual-Channel DDR4 ECC & non-ECC unbuffered DIMM supported up to 64GB
I/O Interface	Ethernet	LAN1: Intel® I219LM Clarkville-V with Intel® AMT 11.0 supported LAN2: Intel® I210 PCIe controller
	Digital I/O	8-bit digital I/O
	Expansion	16-lane PCIe link from CPU via golden finger: Supports one PCIe x16, or two PCIe x8, or one PCIe x8 + two PCIe x4 on the backplane (configured via BIOS) 4-lane PCIe link from PCH via golden finger: Supports four PCIe x1 slots or one PCIe x4 slot on the backplane (configured via BIOS switch) One PCIe Mini
Power	Power consumption	5V@3.22A, 12V@6.81A, 3.3V@1.21A, 5VSB@0.18A (Intel® Xeon® E3-1275 v5 3.60 GHz CPU with 64GB (16GBx4) 2133 MHz DDR4 memory)
Environment	Operating Temperature	-20°C ~ 60°C
Environment	Humidity	5% ~ 95%, non-condensing
Option	iRIS	1 x iRIS-2400 slot (optional)
Dimensions	Dimensions	338 mm x 126 mm
Weight	Weight	1000g / NW: 420g
I/O Interface	I/O Interface	6 x SATA 6Gb/s
		2 x Internal RS-232
		2 x Internal RS-232/422/485
		1 x KB/MS((1 x 6Pin Wafer))
		7 x Internal USB 2.0((1 type A 180°, 6 by pin header))
		1 x LPT
		2 x Internal USB 3.0((19 Pin BOX HEADER))
