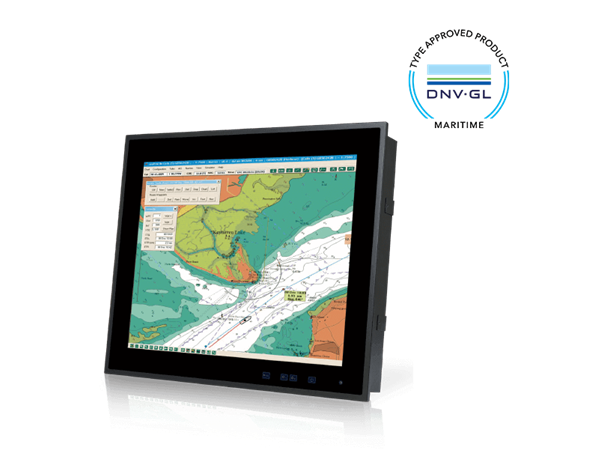

S19M-AD/PC-R10 19" Marine Display

IEI/AC and DC redundant power/ PCTouch

Product nr: 121603

Spec Item		Description
Display	LCD Size	19"
	Brightness(cd/m2)	300
	Max Resolution	1280(W) x 1024(H)
	Contrast Ratio	2000 : 1
	Backlight MTBF(hrs)	50000
System	CPU
	Chipset
	HDD	1 x 2.5" SATA HDD bay
	SSD	CF Type II
	SBC Model
I/O Interface	Ethernet
	Audio Codec
	RAM
	CD-ROM
	I/O Ports and Switches	DVI-D Signal Input: 2 x DVI (24-pin, female) VGA Signal Output: 1 x D-sub (15-pin, female) - Clone of VGA IN* Composite Video Input: 1 x BNC connector (female)
Power	Input
	Output
	Power adapter	9~28V DC
Environment	Operating Temperature	-15°C~55°C
	Operating Vibration
	Operating Shock
	Safety & EMC
	Humidity	10% to 95% (non-condensing)
	Storage Temperature	-20°C~60°C
	IP Level
Physical Characteristics	Color
	Mounting
	Dimensions (LxWxH) (mm)	463 mm x 394 mm x 113 mm
	Construction
	Cutout Dimensions	442 mm x 373 mm
Option	iRIS
Weight	Weight	7.74 Kg
Expansion Slots	Expansion Slots
LCD	LCD Color	16.7M
	Pixel Pitch (mm)	0.3075mm x 0.3075mm
	Viewing Angle (H-V)	178° / 178°
Touch	Touch Screen	EXC7920 (10-point)
Touch	Touch Controller	6H
Other Features	System Cooling
I/O Interface	I/O Interface	1 x LAN(RJ-45)
		2 x Power In(100-240V AC/18-36V DC(Terminal Block))
		1 x RS-422/485
		1 x Touchscreen(USB Type A connector (female))
		1 x Buzzer
		2 x BNC(Input/Output)
		3 x VGA(Input x 2,Output x1)
		2 x DVI-D
