Panel PC
You are here:
Hatteland Technology
>
Produkter
>
INDUSTRIAL COMPUTING
>
Panel PC
>
Panel PC Fanless
>
5" - 11,9"
>

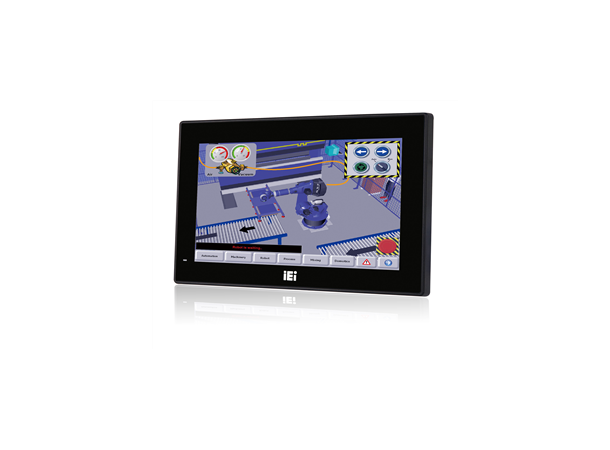

AFL3-08A-BT-J1/PC/2G-R10
AFL3-08A-BT-J1/PC/2G-R10
IEI/8,4"/J1900/2GB/PCTouch/9-30VDC+AC
Product nr:
120693
Add to wish list
Datablad
Description
Support
Hardware spec.
Ordering Info.
Package contents
Spec Item
Description
Dimensions
Dimensions
233 x 175 x 50
Environment
Humidity
10% to 95% (non-condensing)
Operating Temperature
-10°C~50°C
Safety & EMC
CE/FCC
Storage Temperature
-20°C~60°C
I/O Interface
Audio
ALC892
Ethernet
2 x PCIe GbE by RTL8111E controller
LCD
Brightness (cd/m2)
450
Contrast Ratio
600:1
LCD Color
16.2M
Pixel Pitch (mm)
0.213 (H) x 0.213 (V)
Resolution
800 x 600 (4:3)
Size
8.4”
Viewing Angle (H-V)
160º / 140º
Power
Power consumption
12V@2A(Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory)
Power Requirement
9 V ~ 30 V
System
CPU
Intel® Celeron® J1900 (quad core, 2.0 GHz)
Memory Max.
One 204-pin 2 GB 1333MHz single-channel, 2GB
DDR3L SDRAM pre-installed (system max. 8GB)
Storage
mSATA
Touch
Touch Controller
EETI EXC3160
Touch Screen
Projected capacitive type
Weight
Weight
0.8/2.44
I/O Interface
I/O Interface
1 x Reset Button
1 x Power Switch
1 x AT/ATX switch
1 x DC Input Jack(9-30V Lockable)
1 x LAN(Gbe)
2 x USB 3.0
2 x USB 2.0
1 x Audio((line-out))
1 x RS-232((RJ45 connector))
1 x RS-422/485((DB-9 connector))
