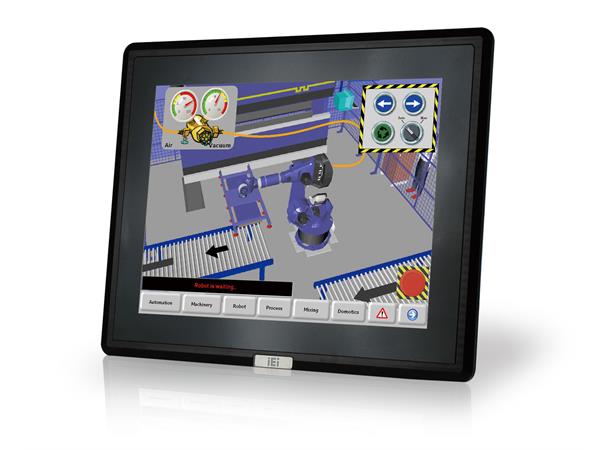

DM-F65A/R-R10 6,5" Touch monitor


Product nr: 120427
Spec ItemDescription
DisplayLCD Size6.5”(4:3)
Max Resolution640 (W) x 480 (H)
Contrast Ratio600:1
Backlight MTBF(hrs)50000
I/O InterfaceI/O Ports and Switches1 x VGA (DB-15)
1 x DVI
1 x USB 2.0 (touch)
1 x RS-232 (reserved for resistive touch ATO)
1 x Lockable 12V DC jack
PowerPower adapter12V DC
EnvironmentOperating Temperature-20°C ~ 60°C (with air flow)
Humidity10% to 95% (non-condensing)
Storage Temperature-20°C ~ 70°C
IP LevelIP 65 compliant front panel
Physical CharacteristicsDimensions (LxWxH) (mm)191.8 x 154.36 x 42.88
Cutout Dimensions180 x 140
WeightWeight1.1/2.6 Kg
LCDLCD Color16.2M
Pixel Pitch (mm)0.207 x 0.207
Viewing Angle (H-V)160° / 140°
TouchTouch Screen5-wire resistive single touch window
Touch ControllerPenmount 6000
