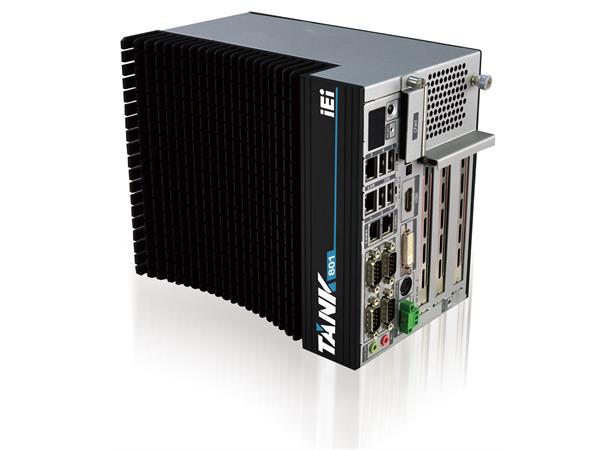

TANK-801-BTi-J1/2G/3A-R11

IEI/Celeron J1900/2GB ram/2 PCI+1 PCIe

Product nr: 120179

Spec Item	Description
Color
Color	Black C + Silver
Dimensions
Dimensions	136 x 219 x 188
Environment
Humidity	5% ~ 95%, non-condensing
Operating Temperature	-20°C ~ 60°C with air flow (SSD)
Expansion Slots
Expansion Slots	1 x Full size PCIe Mini PCI/PCIe: 3A: One PCIe x1 + Two x PCI 3B: Two PCIe x1 + One x PCI 3C: Three x PCI
Form factor
SBC Form Factor	CPU: Intel® Celeron® J1900 2 GHz Chipset:SoC System Memory: One 204-pin DDR3L 1.35V SO-DIMM 2 GB pre-installed (system max: 8G)
I/O Interface
I/O Ports	2 x USB 3.0 2 x USB 3.0 Ethernet: 2 x RJ-45 1 x PCIe GbE by Intel® I210 1 x PCIe GbE by Intel® I211 COM Port: 2 x RS-232 (DB-9) 2 x RS-232/422/485 (DB-9, with isolation) 16-bit digital I/O, 8-bit input/8-bit output 1 x DisplayPort, 1 x DVI-I 1 x Line-out, 1 x Mic-in
System
Cooling method / System Fan	Fanless
Drive Bays	1 x 2.5' SATA 6Gb/s HDD/SSD Bay
Weight
Weight	2.8 kg/4.3 kg

Item No.	Description
TANK-801-BTi-J1/2G/3A-R11	Fanless embedded system with two PCI and one PCIe x 1 expansion , Intel Bay-Trail J1900 2GHz, TDP 10W, 2GB DDR3L pre-installed memory , 1 x DVI-I, 1 x DisplayPort , iRIS-2400 optional, 9V~36V DC; RoHs
TANK-801-BTi-J1/2G/3C-R11	Fanless embedded system with three PCI expansion , Intel Bay-Trail J1900 2GHz, TDP 10W, 2GB DDR3L pre-installed memory , 1 x DVI-I, 1 x DisplayPort , iRIS-2400 optional, 9V~36V DC; RoHs
TANK-801-BTi-J1/2G/3B-R11	Fanless embedded system with one PCI and two PCIe x 1 expansion , Intel Bay-Trail J1900 2GHz, TDP 10W, 2GB DDR3L pre-installed memory , 1 x DVI-I, 1 x DisplayPort , iRIS-2400 optional, 9V~36V DC,RoHs
